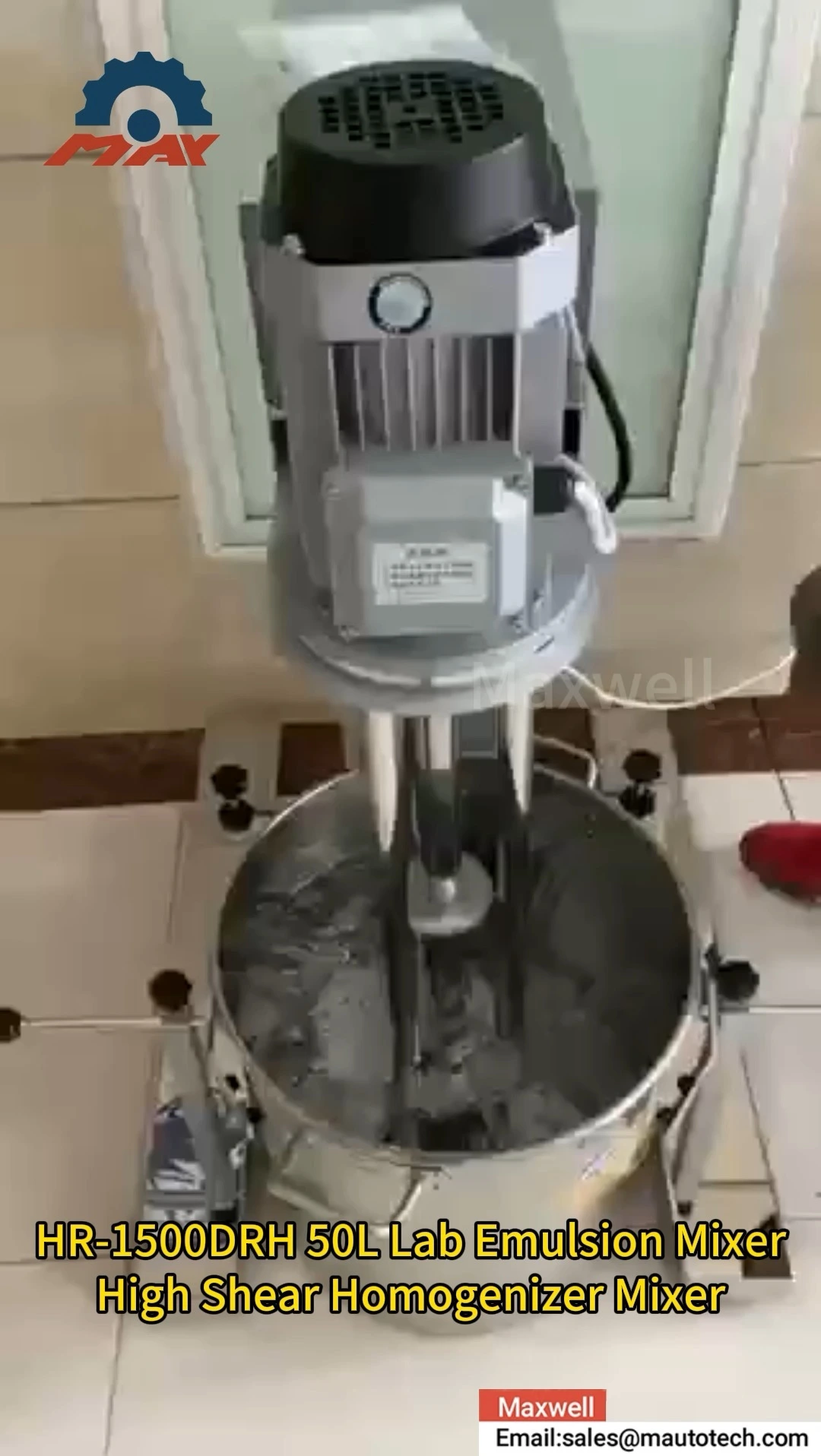

100L Cream Shampoo High Shear Laboratory Emulsifier Homogenizer
Place of Origin: Wuxi,Jiangshu,China
Minimum order quantity: 1
Color: Same as picture or customized
Material: SUS304,SUS316
Packing: Wooden Case
Delivery time: 30-40 days
Model: HR-750DRH, HR-1500DRH, HR-2200DRH, HR-3000DRH
Capacity: 10L, 50L, 100L, 180L
Product Introduce
Wuxi Maxwell Electric lift emulsifier homogenizer is a laboratory equipment designed for small laboratory experiments.Through the action of mechanical external force, the particle size of liquid-liquid and solid-liquid material particles is narrowed, so that one phase is evenly distributed into another active phase, so as to achieve the effect of refinement, homogeneity, dispersion and emulsification,Thus, a stable liquid-liquid, solid-liquid dispersion system is formed.
Widely used in biology, medicine, video, paint, ink, textile auxiliaries, cosmetics,Dispersion, emulsification and homogenization of product materials in lubricants, pesticides and other industries.
Video Display
Product Parameters
|
Type |
HR-1500DRH |
HR-2200DRH |
HR-3000DRH |
|
Voltage |
220V |
220V |
220V |
|
Power |
1500W |
2200W |
3000W |
|
Capacity |
50L |
100L |
180L |
| Speed range |
0~3000rpm |
0~3000rpm |
0~3000rpm |
|
Motor type |
Three-phase asynchronous motor |
Three-phase asynchronous motor |
Three-phase asynchronous motor |
|
Rotor/stator type |
Long hole type (standard) / round hole type / claw type |
Long hole type (standard) / round hole type / claw type |
Long hole type (standard) / round hole type / claw type |
|
Lifting mode |
Eletric lifting |
Eletric lifting |
Eletric lifting |
|
Lifting distance |
400mm |
500mm |
600mm |
|
Exterior Dimension |
750*620*1050mm |
750*620*1050mm |
850*620*1250mm |
|
Bottom Dimension |
395*420mm |
395*420mm |
495*620mm |
|
Working head length |
670mm |
670mm |
770mm |
|
Emulsifying head off the ground size |
50~80 |
50~80 |
50~80 |
Product in details
Anatomy Diagram
Detailed drawing and section drawing introduction
Dispersing Emulsifier Working Process
The emulsifier adopts specially designed rotor and stator driven by motor at high speed, the processed material is sucked into the rotor, due to the strong kinetic energy brought by the high frequency mechanical effect produced by the rotor rotating at high speed, so that the material is subjected to strong mechanical and hydraulic shear, centrifugal extrusion, friction of the liquid layer, high-speed collision tear and turbulence under the combined effect of splitting, crushing and dispersing in the precision gap between the stator and rotor, and in a short period of time, the material will be subjected to hundreds of thousands of such shear effect, so that the immiscible material can be evenly and finely emulsified, crushed and dissolved instantly. The material is subjected to hundreds of thousands of times of this shearing effect, so that the immiscible material in an instant uniformly fine to achieve the effect of emulsification, crushing, solution.
Machine Advantage
Choose us, and we promise to do everything needed to ensure a successful and satisfactory working partnership. The 6 reasons set out below will give you an insight into our advantages.
Application
Suitable forstirring, dissolving and dispersing all kinds of liquids in laboratoryand fordissolvingand dispersinggrindingof high viscosity materials.
