Integrating development, manufacturing and sales, as a first-level mixer emulsifier factory.

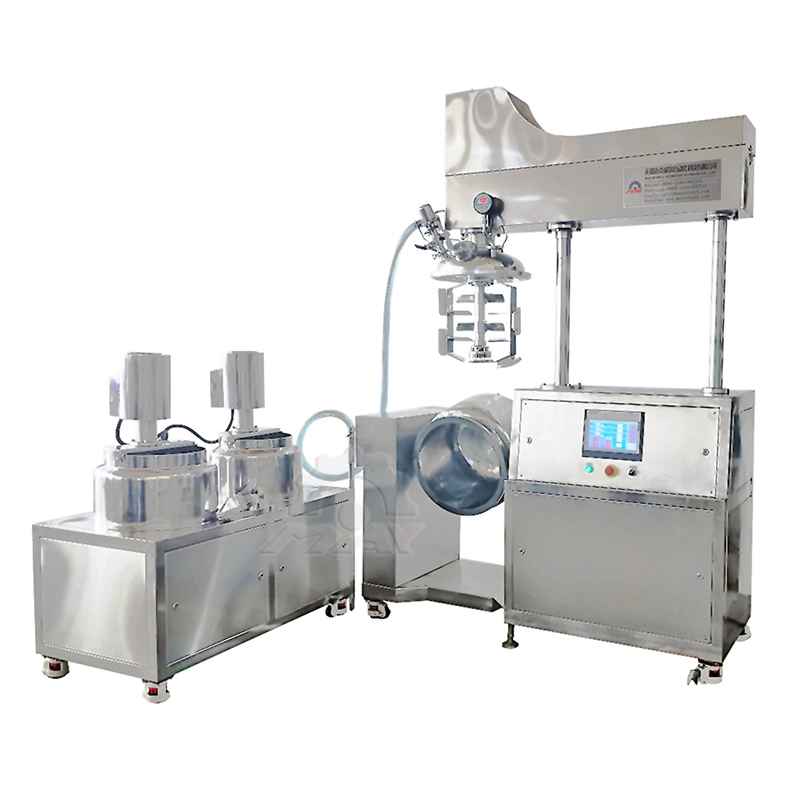

30L Vacuum Emulsifying Mixer 1
30L Vacuum Emulsifying Mixer 2
30L Vacuum Emulsifying Mixer 3
30L Vacuum Emulsifying Mixer 4
30L Vacuum Emulsifying Mixer 5
30L Vacuum Emulsifying Mixer 1
30L Vacuum Emulsifying Mixer 2
30L Vacuum Emulsifying Mixer 3
30L Vacuum Emulsifying Mixer 4
30L Vacuum Emulsifying Mixer 5

30L Vacuum Emulsifying Mixer

Place of Origin: Wuxi,Jiangshu,China

Minimum order quantity: 1

Color: Sliver

Material: SUS304,SUS316

Packing: Wooden Case

Delivery time: 30-40 days

Model: 30L

Console: PLC touch screen or Buttons

    oops...!

    no product data.

    Go to homepage

    Product Introduce

    The cover of the pot is of automatic lifting type, the materials in the water and oil pots can directly enter the emulsifying pot under vacuum through the conveying pipeline, the discharging mode is the emulsifying pot turning type and the bottom valve discharging type, etc.  The heating of the materials is realized through the electric heating pipe heating the heat-conducting medium in the pot mezzanine, and the heating temperature can be arbitrarily set and automatically controlled.


    The material can be cooled by accessing the coolant in the jacket, which is easy and convenient to operate, and there is a heat preservation layer outside the jacket.  Homogenizing system and mixing system can be used separately or at the same time.  Particulation, emulsification, mixing, blending and dispersing of materials can be completed in a short time.  The part in contact with materials is made of high quality stainless steel (commonly used 304, 316L for medical use), the inner surface is mirror polished, the vacuum stirring device is hygienic and clean, and it is manufactured in accordance with the hygiene standard of GMP norms, which is the ideal cream production equipment for customers.

    2s 30L emulsion mixer
    2s 30L emulsion mixer
    3s 30L emulsion mixer
    3s 30L emulsion mixer

    Video Display

    Product Parameter

    Scraping stirring speed

    10-120 rpm Adjustable

    Homogenizing rotation speed (r/min)

    3000 (r/min)

    Heating Method

    Steam Heating Or Electric Heating

    Working Principle

    Put the materials into premix tank oil phase tank and water phase tank,after heated & mixed in water tank and oil tank, it can drawn the materials into emulsifying tank by vacuum pump. Adopting the middle stirrer & Teflon scrapers residues in emulsifying tank that sweep the residues on the wall of the tank to makes the materials wiped off become the new interface constantly.


    Then the materials will cut off, compressed and fold by the blades to stir, mix and run to the homogenizer. By the strong cutting off, impact and turbulent current from the high-speed shear wheel and fixed cutting case, the materials are cut off in interstices of stator and rotor and turn to particles of 6nm-2um promptly. Because the emulsifying tank is working under the vacuum state, the bubbles that produces in the process of mixing is taken away in time.

    图片1 (4)
    图片1 (4)
    图片2 (5)
    图片2 (5)

    Product Features

    30L Vacuum Emulsifying Mixer 10
    1
    1
    The all-round wall scraping mixing adopts the frequency converter for speed adjustment , so that high quality products of different processes according to customer requirements.
    30L Vacuum Emulsifying Mixer 11
    2
    The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve manyindis soluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energy consumpion and shorten production period.
    30L Vacuum Emulsifying Mixer 12
    3
    The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mittor polishing , which fully conforms to GMP requirements.
    30L Vacuum Emulsifying Mixer 13
    4
    According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric heating. Easy to discharge , bottom direct discharge or by transfer pump.
    3D立体展示常规的行星搅拌桨+均质+分散 (2)

    Planetary Mixer Structure

    ● Double Twist Mixing Head

    Double-layer high speed dispersing head

    Scraper

    Emulsifying head ( Homogenizer head )

    The mixing head combination forms are tailored for different process.   Impeller  blade, Dispersing disc, Twist impeller and Scraper are optional.

    Emulsifying machine structure diagram

    In the application field of the multi-function mixer, we accumulated a wealth of experience. Our product combination include the combination of high speed and high-speed, the combination of high-speed and low-speed and the combination of low-speed and low-speed.   High-speed part is divided into high shear emulsification device, high-speed dispersion device, high-speed propulsion device, butterfly stirring device.   Low-speed part is divided into anchor stirring, paddle stirring, spiral stirring, helical ribbon stirring, rectangular stirring and so on.   Any combination has its unique mixing effect.   It also have vacuum and heating function and temperature inspect function

    4s 30L emulsion mixer

    Product Description

    1. Mixing Paddle: Two-way wall scraping and mixing :Mix materials quickly,and it is very easy to clean,saving cleaning time.

    2. Tank: 3-Layer stainless steel structure pot body,GMP standard engineering,sturdy and durable,good anti-scalding effect.

    Steam heating or electric heating according to customers' requests.

    3. Console Buttons:  (Or PLC touch screen) control vacuum,temperature,frequency and time setting system

    d3-2s plc console
    d3-2s plc console
    d3s-2 buttons console
    d3s-2 buttons console
    d1s paddle
    d1s paddle
    d2s tank
    d2s tank

    Application

    30L Vacuum Emulsifying Mixer 20
    Chemical Products
    Soap,plain bar soap,long-bar soap,laundry soap,Handmade soap,cold process soap Toilet soap,Body Whitening Soap ,Organic Natural soap,Liquid Soap,Hand Washing,Shampoo, Hand Sanitizer,detergent,, conditioning shampoo.hair conditioner,liquid Shampoo , Disinfectant, Disinfectant fluid,Alcohol disinfectant,Chemical.
    30L Vacuum Emulsifying Mixer 21
    Personal Hygiene Products
    Shower gel , Body Wash , Bath Cream , Shower Foam , Bath Gel ,Moisturizing Lotion , Body Lotion, Baby Emulsion , Emollient Lotion,Moisturizer ,,Stretch Oil , Brightening Moisturizing Emulsion , Sugar Scrub , Baby Skincare Softener , Scrub Cream ,Facial Scrub , Abrasive , Scrubs , Daily Exfoliating Cream , Facial Scrub , Cleansing Gel , Facial Cleanser , Face Wash , Cleanser , Cleansing Foam ,Facial Foam , Gentle Cleansing Lotion , Toothpaste, Dental Cream ,Collutory , Mouthwash , Collutorio , Das Mundwasser.
    30L Vacuum Emulsifying Mixer 22
    Skin Care Products
    Toner, Toning Lotion , Astringent , Mild Lotion , Suntan Oil , Sun Screen , Suntan Lotion , Sunblock ,Sunburn Cream, Anti-Wrinkle Cream , Facial Essence , Essence , Water Gel , Night Concentrate , Hydrating Gel , Face Oil , Skin Oil , Eye Gel ,Smoothing Toner, Extra Cream , Age-delay Cream , Night Cream , Retinal Moisturizer , Cream,Neck Cream , Facial Serum ,Face Cream,Facial Cream,Petro Leum Jellly , Petrolatum, Jelly Body Cream , Ointment , Butter Cream , Shea Butter Cream,Liquid Foundation ,Liquid Makeup , Fluid Foundation , BB Cream ,Sleeping Pack , Sleeping Mask , Water Sleeping Pack , Face Mask , Facial Mask ,Cosmetic.
    30L Vacuum Emulsifying Mixer 23
    Food
    Cubilose , Ketchup , Catchup , Tomato Ketchup , Tomato Catchup , Tomato Paste ,Salad Dressing ,Thousand Island Sauce , Peanut Butter ,Cheese , Honey , Chilli Sauce , Chilli Paste , Mushroom Organic Sauce , Bearnaise , Russian dressing ,Remoulade , Maionese , Mornay Sauce , Milk , Drink.

    Other models

    IMG_0922
    IMG_0922
    IMG_0924
    IMG_0924
    IMG_0920
    IMG_0920

    5 L button (with oil pan)

    IMG_1724
    IMG_1724
    IMG_1760
    IMG_1760
    IMG_1753
    IMG_1753

    5 L touch screen (without oil pan)

    Product Specification

    Type Design
    volume
    Working
    volume
    Tank inner size Rotary
    power
    Revolution speed Self-rotary speed Disperser power Disperser
    speed
    Lifing Dimension
    SXJ2 3 2 180*120 0.75 0-51 0-112 0.75 0-2980 Electric 800*580*1200
    SXJ5 7.4 5 250*150 1.1 0-51 0-112 1.1 0-2980 1200*700*1800
    SX110 14 10 300*200 1.5 0-48 0-100 1.5 0-2980 1300*800*1800
    SXJ15 24 15 350*210 2.2 0-43 0-99 2.2 0-2980 1500*800*1900
    SXJ30 43 30 400*350 3 0-42 0-97 3 0-2980 1620*900*1910
    SXJ50 68 48 500*350 4 0-39 0-85 4 0-2100 Hydraulic
    SXJ60 90 60 550*380 5.5 0-37 0-75 5.5 0-2100 1800*1100*2450
    SX1100 149 100 650*450 7.5 0-37 0-75 11 0-2100 2200*1300*2500
    SX1200 268 200 750*600 15 0-30 0-61 22 0-1450 2400*1600*2800
    SX1300 376 300 850*650 22 0-28 0-56 30 0-1450 3300*1300*3400
    SXJ500 650 500 1000*830 37 0-24 0-48 45 0-1450 3700*1500*3500
    SX11000 1327 1000 1300*1000 45 0-20 0-36 55 0-1450 4200*1800*3780
    SX12000 2300 2000 1500*1300 75 0-13 0-35 90 0-1450 4500*2010*4000
