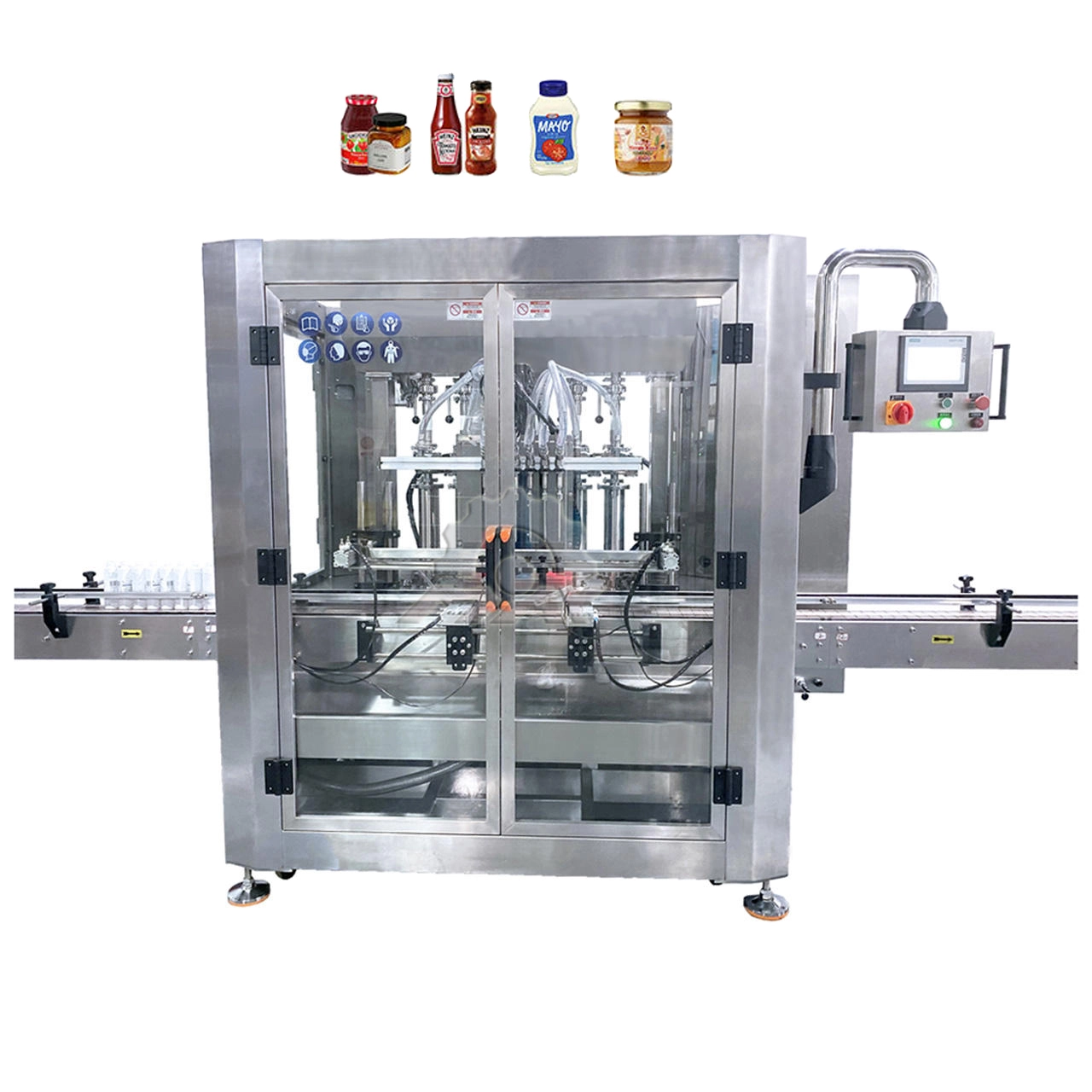

Automatic 6 Heads Piston Filling Machine For Liquid Sauce Paste

Place of Origin: Wuxi,Jiangshu,China

Minimum order quantity: 1

Color: Sliver

Material: SUS304,SUS316

Packing: Wooden Case

Delivery time: 20-30 days

Model: Single Head, Double Heads, 4 Heads, 6 Heads, 8 Heads, 10 Heads, 12 Heads

    oops...!

    no product data.

    Go to homepage

    Product Introduce

    1s (6)
    1s (6)
    1s (5)
    1s (5)
    1s (4)
    1s (4)

    Video Display

    Machine Parameters

    Model

    GSF-6

    Filling range

    100-1000ml (Customizable)

    Filling speed

    20-35 bottles/min (Base on 100-500ml)

    (Also depend on filling material)

    Measurement accuracy

    ±1%

    Power voltage

    2.5kw

    Working air pressure

    6-7kg/cm²

    Gas consumption

    0.7-0.9m³/min

    Dimention(L*W*H)

    2m*1m*2.2m

    Net weight

    650kg

    Features

    ● Adopts world-famous brands of electrical and pneumatic components, lowfailure rate, reliable performance, long service life.

    ● Material contact parts are made of stainless steel, easy to disassemble and assemble, easy to clean and meet the requirements of GMP.

    ● Easy to adjust filling volume and filling speed, operated and displayed by touch screen, beautiful appearance.

    ● With no bottle no filling function, liquid level automatic contral feeding.

    No need to change parts, you can quickly adjust the various specifications of the shape of the bottle.

    ● The filling head is equipped with a special leak-proof device. No wire drawingor drip leakage occurs during filling.

    d1s (4)

    Machine Details

    1. Anti-Foaming Filling NozzleWith servo motor diving filling system to achieve the defoaming filling function, and anti-dripping with mechanical cutting and air blowing design to avoid dripping or leakage. This design enable the machine to fill thick, thin, easy foaming and many kinds of products.

    2. High Precision Piston: Each stainless steel piston is polished from inside and outside, and 3mm thicker than regular piston. Such a workmanship will increase the cost, but the filling precision will become higher, service life longer, what's more less maintenance to do.

    3. Diversified Air Cylinder Design: Latest cylinder design to achieve Staggered Filling Function, it makes the filling speed 1.5 times faster than traditional design. All air cylinder will be adopted with international brand, such as Festo, Air TAC.

    4. Siemens PLC Touch Screen Smart Control: The filling speed and volume of each nozzle can be adjusted on the screen independently. For filling different products we can save the parameter in the screen as recipe, and one-button start when changing different packaging or products.

    5. Servo Motor Control: Servo motor control makes the filling precision better, and diving filling system more smooth. Also it would be much more convenient to change filling volume and height of filling nozzle.

    6. Electrical Cabinet: All the main parts of the machine will be adopted with international brand, such as Siemens, Schneider, Sick, Panasonic, etc. Long service life, easier to maintain and replace.

    p5s
    p5s
    p6s
    p6s
    p1s
    p1s
    p2s
    p2s
    p3s
    p3s
    p4s
    p4s

    Application

    Widely used in the filling of liquids, various liquids and pastes, replacement of filling valves ( that is multi-head thick sauce full-automatic filling machine), can also be filled with granular semi-fluid, paste, sauce.etc.
