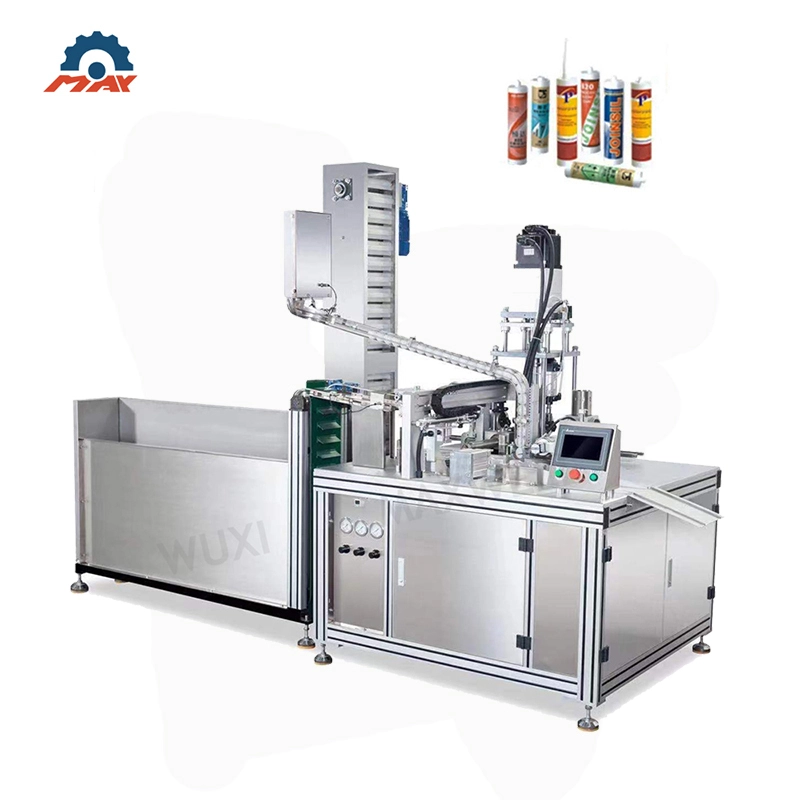

Horizontal Full Automatic Silicone Sealant Cartridge Filling Machine

Place of Origin: Wuxi,Jiangshu,China

Minimum order quantity: 1

Color: Same as picture or customized

Material: SUS304,SUS316

Packing: Wooden Case

Delivery time: 30-40 days

ModelSingle Head,Double Head, Customized quantity head, Extruder (optional)

    oops...!

    no product data.

    Go to homepage

    Product Introduce

    2d4efe60730dce31933a7e9efaffa71 (2)
    2d4efe60730dce31933a7e9efaffa71 (2)
    579d6e036fb97be1efb298bb6199ee3
    579d6e036fb97be1efb298bb6199ee3
    10a6f096805b81c4252ad5b2102ed03
    10a6f096805b81c4252ad5b2102ed03
    7c0b7b30cf0151d3bc819a549ab64ac (2)
    7c0b7b30cf0151d3bc819a549ab64ac (2)

    Video Display

    Product Parameter

    Size

    3000mm×1550mm*1900mm

    Air Supply

    >0.5 MPa

    Filling Volume

    MAX 350ml Adjustable

    Volume Precision

    ≤±0.5℅

    Speed

    1200~2400pcs/hr

    Weight

    750kg

    Function

    Horizontal Full Automatic Silicone Sealant Cartridge Filling Machine 11
    1
    1
    Automatic control, manual addition of bottles and bottom caps, automatic bottle supply/automatic quantitative filling, automatic capping/automatic capping/automatic coding (not including coding machine)/automatic blanking.
    Horizontal Full Automatic Silicone Sealant Cartridge Filling Machine 12
    2
    The whole machine adopts PLC controller and touch screen, strict precision control and processing technology of each transmission part, the equipment has high stability and fast response.
    Horizontal Full Automatic Silicone Sealant Cartridge Filling Machine 13
    3
    Adopt positive displacement metering cylinder, servo motor controls quantification. The filling measurement accuracy is high (error 0.5%), touch the screen to adjust the measurement parameters.
    Horizontal Full Automatic Silicone Sealant Cartridge Filling Machine 14
    4
    Material filtering function, standard filtering device.

    Product structure diagram

    full auto silicone sealant filling machine structure diagram
    full auto silicone sealant filling machine structure diagram

    Machine Details

    1. Filling & Capping system: Adopt volumetric measuring cylinder, servo motor control quantitative.  Filling measurement accuracy is high (error 0.5%).  No air comes in during the whole process.

    2. Cartridge loading device: Adopt cartridge loader automatic loading the tube on machine.  Silicone stations filling part connect with drum press and equip cartridge pushing and pulling function.

    3. Cap loading device: Cap elevator and tunnel to auto load cap. Adopt vibrating bowl automatic loading cap. Air cylinder pushes cap on the tube bottom and then turn tube capping it.

    4. Servo control system: Servo motor controlled filling, the whole work process is running stable.

    f6c4b2c3f9ceb610d3131efec010460
    cartridge cap
    cartridge filling machine electric box
    cartridge filling machine electric box
    微信图片_202211301617402
    filling machine plc control panel
    微信图片_20221130161740
    cartrige silicone sealant
    fc718a7810173b925cb4e03dbd46e76
    cap conveyor belts

    Press Machine Parameter

    Equipment name

    Press Material Machine

    Type

    YJ200-1/YJ200-2

    Power Supply

    AC 3~380V+Nwire /50HZ

    Extrusion force

    45T/60T

    suitable bucket

    200L(Dia570MM*Heigh880MM) standard bucket

    Outlet size

    DN65

    Hydraulic station oil tank

    120L

    motor

    4KW/Hydraulic motor

    Hydraulic station oil size

    L650MM*W550MM*H800MM

    extruder / press machine

    Application

    What kinds of sealant are contained
    This machine is used for filling cartridge tube. It can fill materials such as paste, adhesive, AB glue, epoxy glue, RTV silicone,Silicone adhesive/weatherproof structural adhesive/electronic adhesive/nail-free adhesive/AB adhesive/seam sealant/epoxy adhesive/polyurethane adhesive/glass adhesive presser, etc. It equipped with a hydraulic press to handle the high viscosity material. Easy to operate and fast production speed.
