Integrating development, manufacturing and sales, as a first-level mixer emulsifier factory.

Lab Mayonnaise Making Machine | Mayonnaise Emulsfier 1

Lab Mayonnaise Making Machine | Mayonnaise Emulsfier 2

Lab Mayonnaise Making Machine | Mayonnaise Emulsfier 3

Lab Mayonnaise Making Machine | Mayonnaise Emulsfier 4

Lab Mayonnaise Making Machine | Mayonnaise Emulsfier 5

Lab Mayonnaise Making Machine | Mayonnaise Emulsfier 6

Lab Mayonnaise Making Machine | Mayonnaise Emulsfier 7

Lab Mayonnaise Making Machine | Mayonnaise Emulsfier

Colloid Mill Machine for Making Mayonnaise Sesame Paste Chilli Sauce Peanut Butter

Place of Origin: Wuxi,Jiangshu,China

Material: SUS304 / SUS316

Packing: Wooden Case / Stretch Wrap

Delivery time: 20-30 days

Inquiry

Write a Review

Product Introduce

Sanitary stainless steel material. In addition to the motor where the material contact parts are all made of stainless steel, especially the key dynamic and static grinding disk to strengthen the treatment, so it has good corrosion resistance, abrasion resistance, so that the processed materials are pollution-free, hygienic and clean.

The motor and base of split colloid mill are separated, which is characterized by good stability, convenient operation, long service life of the motor, and will not produce the phenomenon of material leakage to burn the motor. It adopts high quality sealing, no abrasion, corrosion resistance and less failure. Through the pulley drive, change the transmission ratio, increase the speed, can make the material crushed more fine.

Vertical colloid mill solves the problem that domestic small colloid mill can not work continuously for a long time due to insufficient power and poor sealing. Its motor pressure is 220V, the overall structure is compact, small size, light weight, reliable sealing structure, can work continuously for a long time, especially suitable for small enterprises and laboratory work.

lab mayonnaise emulsifier 2s.jpg

lab mayonnaise emulsifier 3s.jpg

lab mayonnaise emulsifier 4s.jpg

lab mayonnaise emulsifier 6s.jpg

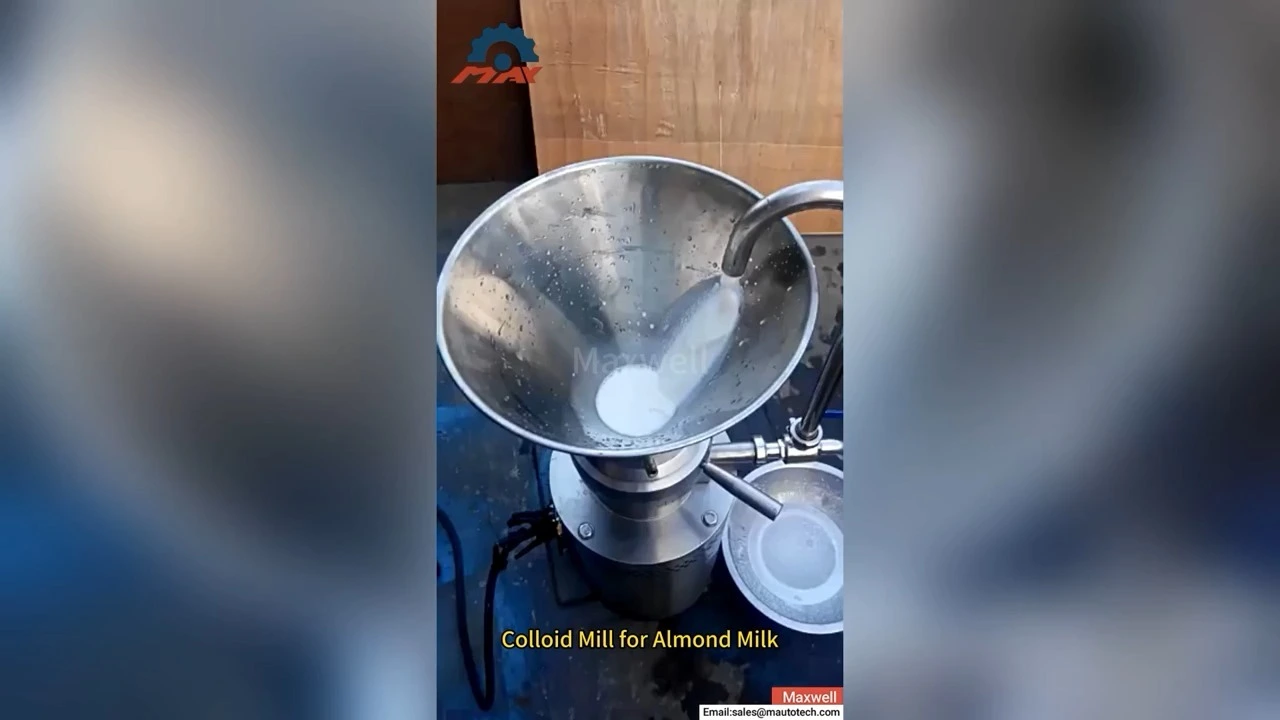

Video Display

Product Parameter

Model	JM-W80	JM-W100	JM-W120	JM-W140
Power (KW)	3	5.5	7.5	7.5
Speed (RPM)	2900	2900	2900	2900
Flow Range (T/h)	0.3-1	0.5-2	0.5-3	0.5-4
Diameter of Grinding Disk (mm)	80	100	120	140
Fineness of processing (um)	2-40	2-40	2-40	2-40
OUTLET (mm)	25	25	32	32
INLET (mm)	48	66	66	66

Rotor Working Principle

The basic principle of colloid mill is a fluid or semi-fluid material through the high-speed relative linkage between the fixed teeth and moving teeth, so that the material is subject to strong shear force, friction and high-frequency vibration and other effects. Grinding relies on the relative movement of the disc toothed ramp and become, one of the high-speed rotation, the other static so that the material through the teeth between the material ramp by a great shear force and friction, but also in the high-frequency vibration and high-speed vortex and other complex forces under the action of the effective crushing, emulsification, homogenization, temperature combined, so as to obtain the satisfaction of the finely processed products.

Application

Fine chemicals: pigments, glues, sealants, resin emulsification, fungicides, coagulants, etc.

Petrochemicals: lubricating grease, diesel emulsification, asphalt modification, catalysts, paraffin emulsion,etc.

Biopharmaceuticals: injections, antimicrobials, ointments, biologics, microencapsulated emulsified sugar coated,etc.
Coatings and inks: printing inks, emulsion paints, architectural paints, automotive paints, coating auxiliaries,etc.
Pesticide industry: fungicides, seed coatings, herbicides, pesticide emulsions, fertilizers, biopesticides,etc.
Nanomaterials: nanomaterials dispersion depolymerization, reaction extraction of nanoproducts.
Food industry: juices, jams, jellies, ice cream, dairy products, additives, tea beverages,etc.
Daily chemical products: detergents, shampoos, creams, lipsticks, facial cleansers, daily flavorings,etc.
Paper industry: pulp, adhesives, rosin emulsification, papermaking auxiliaries, resin emulsification,etc
