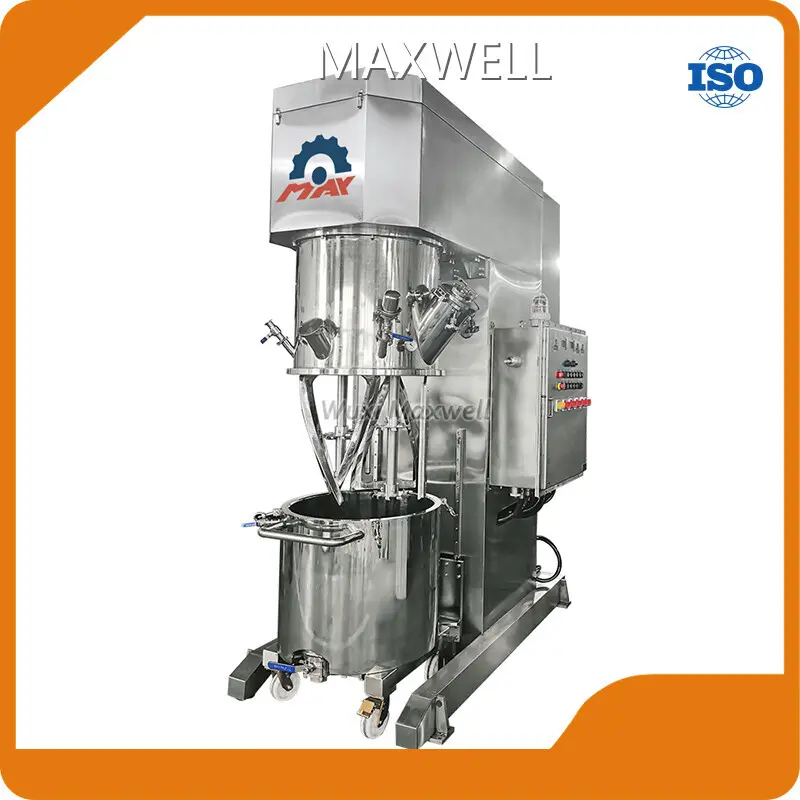

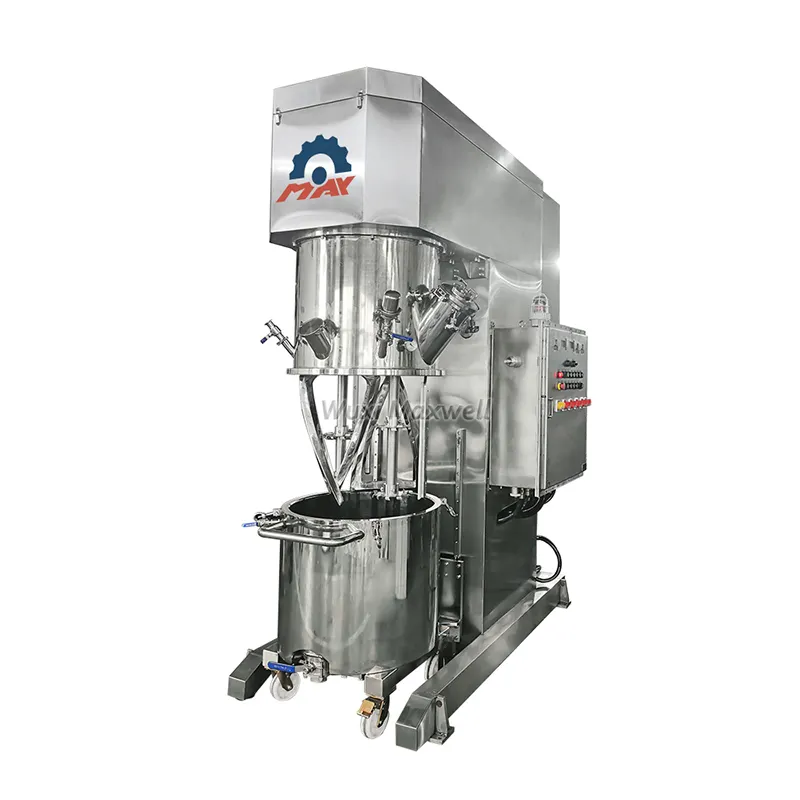

Double Planetary Mixer by MAXWELL
Product details of the double planetary mixer
Product Information
The production of MAXWELL double planetary mixer is ensured by a complete and scientific modern production model, which is a highly efficient way to ensure the production of the product. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea We are striving forward to try to achieve the great performance of double planetary mixer to make it more practical for customers. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea After years, the product still satisfies the demands of markets and is believed to be used by more people. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea
Product Introduce
A high viscosity mixing machine is a powerful and robust equipment designed to tackle the unique challenges associated with blending materials of high viscosity. These machines are engineered with heavy-duty motors, sturdy construction, and specialized mixing elements to handle the resistance and thickness of such materials. They provide the necessary shear and force required to break down clumps, disperse additives, and achieve thorough mixing in high viscosity applications.
The double planetary mixer adopted advanced technology, which is widely used in dispersing mixing middle or high viscosity liquid-liquid/solid-solid/liquid-solid material, such as adhesives, sealant, silicone rubber, glass glue, solder paste, quartz sand,battery paste, electronic slurry, lithium battery slurry, polyurethane, coating, pigment, dyestuff, synthetic resin rubber,ointment and etc for for electronics, chemical,construction and agricultural industries. which the viscosity is app. from 5000cp to 1000000cp.
Video Display
Working Principle
Planetary power mixer is a kind of new high-efficiency mixing and stirring equipment with no dead spot. It features unique and novel stirrer mode, with two or three stirrers as well as one or two auto scrapers inside the vessel. While revolving around the axle of the vessel, the stirrers also rotate around its own axis at different speeds, to achieve complicated movement of strong shearing and kneading for materials inside the vessel. Besides, the scraper inside the equipment revolves around the axle of the vessel, scraping the materials adhering to the wall for mixing and achieving better effects.
The vessel adopts special sealing structure, capable of pressurized and vacuumized mixing, with excellent exhaust and bubble removal effects. Vessel jacket can be heating or cooling according customer's requirements. The equipment is sealed excellently. The vessel cover can be hydraulically lifted and lowered, and vessel can be moved freely for ease of operation. Furthermore, the stirrers and scraper can rise with the beam and fully detach from vessel body, for ease of cleaning.
Machine Features
Planetary Mixer Structure
● Double Twist Mixing Head
● Double-layer high speed dispersing head
● Scraper
● Emulsifying head ( Homogenizer head )
● The mixing head combination forms are tailored for different process. Twist impeller blade, Dispersing disc, Homogenizer and Scraper are optional.
Product Details
In the application field of the multi-function mixer, we accumulated a wealth of experience. Our product combination include the combination of high speed and high-speed, the combination of high-speed and low-speed and the combination of low-speed and low-speed. High-speed part is divided into high shear emulsification device, high-speed dispersion device, high-speed propulsion device, butterfly stirring device. Low-speed part is divided into anchor stirring, paddle stirring, spiral stirring, helical ribbon stirring, rectangular stirring and so on. Any combination has its unique mixing effect. It also have vacuum and heating function and temperature inspect function
Machine Details Description
1. Lifting system: The electric lifting function of the lid can effectively stir the materials under closed conditions. It is easy to clean in the pot and easy to operate.
2. Spiral stirrer, scraper, dispersion plate: Various types can be configured according to customer requirements.
3. Electric or hydraulic lifting tank
4. Control system: There is a digital time relay, which can adjust the speed and working time of the mixer according to the process and characteristics of different products. emergency button. The electrical control cabinet integrates all the power on, off, control,voltage, current, and frequency conversion speed of the machine, and the mixing time setting is reasonably centralized,and the operation is clear at a glance.
5. Hydraulic press machine: The hydraulic press is the supporting equipment of the planetary mixer or the powerful disperser. Its function is to discharge or separate the high-viscosity rubber produced by the mixer.
Application
Our advantage
In the application field of the multi-function mixer, we accumulated a wealth of experience.
Our product combination include the combination of high speed and high-speed, the combination of high-speed and low-speed and the combination of low-speed and low-speed. High-speed part is divided into high shear emulsification device, high-speed dispersion device, high-speed propulsion device, butterfly stirring device. Low-speed part is divided into anchor stirring, paddle stirring, spiral stirring, helical ribbon stirring, rectangular stirring and so on. Any combination has its unique mixing effect. It also have vacuum and heating function and temperature inspect function
Double Planetary Mixer Specification
| Type | Designvolume | Workingvolume | Tank inner size | Rotarypower | Revolution speed | Self-rotary speed | Disperser power | Disperserspeed | Lifing | Dimension |
| SXJ2 | 3 | 2 | 180*120 | 0.75 | 0-51 | 0-112 | 0.75 | 0-2980 | Electric | 800*580*1200 |
| SXJ5 | 7.4 | 5 | 250*150 | 1.1 | 0-51 | 0-112 | 1.1 | 0-2980 | 1200*700*1800 | |
| SX110 | 14 | 10 | 300*200 | 1.5 | 0-48 | 0-100 | 1.5 | 0-2980 | 1300*800*1800 | |
| SXJ15 | 24 | 15 | 350*210 | 2.2 | 0-43 | 0-99 | 2.2 | 0-2980 | 1500*800*1900 | |
| SXJ30 | 43 | 30 | 400*350 | 3 | 0-42 | 0-97 | 3 | 0-2980 | 1620*900*1910 | |
| SXJ50 | 68 | 48 | 500*350 | 4 | 0-39 | 0-85 | 4 | 0-2100 | Hydraulic | |
| SXJ60 | 90 | 60 | 550*380 | 5.5 | 0-37 | 0-75 | 5.5 | 0-2100 | 1800*1100*2450 | |
| SX1100 | 149 | 100 | 650*450 | 7.5 | 0-37 | 0-75 | 11 | 0-2100 | 2200*1300*2500 | |
| SX1200 | 268 | 200 | 750*600 | 15 | 0-30 | 0-61 | 22 | 0-1450 | 2400*1600*2800 | |
| SX1300 | 376 | 300 | 850*650 | 22 | 0-28 | 0-56 | 30 | 0-1450 | 3300*1300*3400 | |
| SXJ500 | 650 | 500 | 1000*830 | 37 | 0-24 | 0-48 | 45 | 0-1450 | 3700*1500*3500 | |
| SXJ1000 | 1327 | 1000 | 1300*1000 | 45 | 0-20 | 0-36 | 55 | 0-1450 | 4200*1800*3780 | |
| SXJ2000 | 2300 | 2000 | 1500*1300 | 75 | 0-13 | 0-35 | 90 | 0-1450 | 4500*2010*4000 |
Company Advantage
• MAXWELL is located in a beautiful place with well-developed transportation network. This is conducive to the purchase and shipment of goods.
• Since the beginning in our company has accumulated a lot of experience in production and sales of products through the continuous development for years.
• With a comprehensive management service system, MAXWELL is capable of providing customers with one-stop and professional services.
• A number of highly skilled and experienced engineers who have accumulated rich industry experience lay a solid foundation for our development.
MAXWELL produces various cosmetic makingm machine,mayonnaise making machine,vacuum emulsifying mixer,double planetary mixer,filling machine,glue filling machine,silicone sealant filling machine,vacuum planetary mixer,industrial mixer,homogenizer,lab planetary mixer,vacuum homogenizer mixer,cosmetic cream mixer machine in the long term. We provide massive excellent choices and one-stop order service!
