Vacuum Emulsifying Machine - - MAXWELL

Product Introduce

The cover of the pot is of automatic lifting type, the materials in the water and oil pots can directly enter the emulsifying pot under vacuum through the conveying pipeline, the discharging mode is the emulsifying pot turning type and the bottom valve discharging type, etc.  The heating of the materials is realized through the electric heating pipe heating the heat-conducting medium in the pot mezzanine, and the heating temperature can be arbitrarily set and automatically controlled.  The material can be cooled by accessing the coolant in the jacket, which is easy and convenient to operate, and there is a heat preservation layer outside the jacket.  Homogenizing system and mixing system can be used separately or at the same time.  Particulation, emulsification, mixing, blending and dispersing of materials can be completed in a short time.  The part in contact with materials is made of high quality stainless steel (commonly used 304, 316L for medical use), the inner surface is mirror polished, the vacuum stirring device is hygienic and clean, and it is manufactured in accordance with the hygiene standard of GMP norms, which is the ideal cream production equipment for customers.

d1s lab cream making machine

d7s lab cream making machine

d2s lab cream making machine

d3s emulsifier machine

d4s lab cream making machine

d5s-2 lab cream making machine

d6s lab cream making machine

Working Principle

Put the materials into premix tank oil phase tank and water phase tank,after heated & mixed in water tank and oil tank, it can drawn the materials into emulsifying tank by vacuum pump. Adopting the middle stirrer & Teflon scrapers residues in emulsifying tank that sweep the residues on the wall of the tank to makes the materials wiped off become the new interface constantly.

Then the materials will cut off, compressed and fold by the blades to stir, mix and run to the homogenizer. By the strong cutting off, impact and turbulent current from the high-speed shear wheel and fixed cutting case, the materials are cut off in interstices of stator and rotor and turn to particles of 6nm-2um promptly. Because the emulsifying tank is working under the vacuum state, the bubbles that produces in the process of mixing is taken away in time.

图片1 (4)

图片2 (5)

Product Features

1

1

The all-round wall scraping mixing adopts the frequency converter for speed adjustment , so that high quality products of different processes according to customer requirements.

2

The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve manyindis soluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energy consumpion and shorten production period.

3

The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mittor polishing , which fully conforms to GMP requirements.

4

According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric heating. Easy to discharge , bottom direct discharge or by transfer pump.

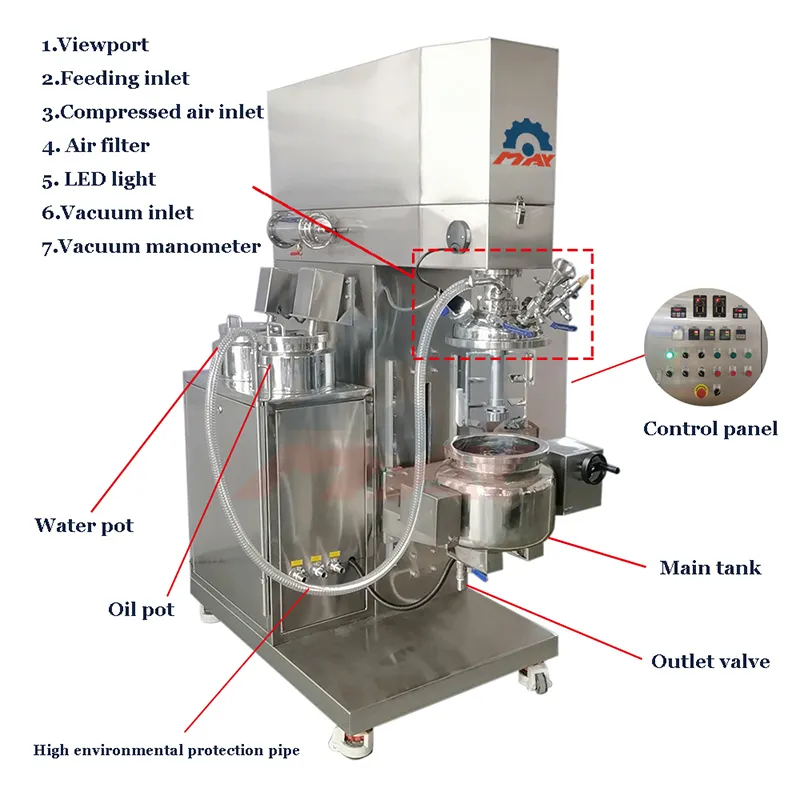

Emulsifying machine structure diagram

Machine Details Description

1. Mixing Paddle: Two-way wall scraping and mixing :Mix materials quickly,and it is very easy to clean,saving cleaning time.

2. Tank: 3-Layer stainless steel structure pot body,GMP standard engineering,sturdy and durable,good anti-scalding effect.

Steam heating or electric heating according to customers' requests.

3. Console Buttons:  (Or PLC touch screen) control vacuum,temperature,frequency and time setting system

d3s emulsifier machine

d4s lab cream making machine

d5s-2 lab cream making machine

d6s lab cream making machine

Application

Chemical Products

Soap,plain bar soap,long-bar soap,laundry soap,Handmade soap,cold process soap Toilet soap,Body Whitening Soap ,Organic Natural soap,Liquid Soap,Hand Washing,Shampoo, Hand Sanitizer,detergent,, conditioning shampoo.hair conditioner,liquid Shampoo , Disinfectant, Disinfectant fluid,Alcohol disinfectant,Chemical.

Personal Hygiene Products

Shower gel , Body Wash , Bath Cream , Shower Foam , Bath Gel ,Moisturizing Lotion , Body Lotion, Baby Emulsion , Emollient Lotion,Moisturizer ,,Stretch Oil , Brightening Moisturizing Emulsion , Sugar Scrub , Baby Skincare Softener , Scrub Cream ,Facial Scrub , Abrasive , Scrubs , Daily Exfoliating Cream , Facial Scrub , Cleansing Gel , Facial Cleanser , Face Wash , Cleanser , Cleansing Foam ,Facial Foam , Gentle Cleansing Lotion , Toothpaste, Dental Cream ,Collutory , Mouthwash , Collutorio , Das Mundwasser.

Skin Care Products

Toner, Toning Lotion , Astringent , Mild Lotion , Suntan Oil , Sun Screen , Suntan Lotion , Sunblock ,Sunburn Cream, Anti-Wrinkle Cream , Facial Essence , Essence , Water Gel , Night Concentrate , Hydrating Gel , Face Oil , Skin Oil , Eye Gel ,Smoothing Toner, Extra Cream , Age-delay Cream , Night Cream , Retinal Moisturizer , Cream,Neck Cream , Facial Serum ,Face Cream,Facial Cream,Petro Leum Jellly , Petrolatum, Jelly Body Cream , Ointment , Butter Cream , Shea Butter Cream,Liquid Foundation ,Liquid Makeup , Fluid Foundation , BB Cream ,Sleeping Pack , Sleeping Mask , Water Sleeping Pack , Face Mask , Facial Mask ,Cosmetic.

Food

Cubilose , Ketchup , Catchup , Tomato Ketchup , Tomato Catchup , Tomato Paste ,Salad Dressing ,Thousand Island Sauce , Peanut Butter ,Cheese , Honey , Chilli Sauce , Chilli Paste , Mushroom Organic Sauce , Bearnaise , Russian dressing ,Remoulade , Maionese , Mornay Sauce , Milk , Drink.

Company Advantages

· The design of MAXWELL vacuum emulsifying machine is carefully cheked and considered from perspective of users. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea

· The strict quality standards make the worldwide export of this product possible. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea

· Wuxi MAXWELL Automation Technology Co., Ltd seeks continuous improvement to attain a high standard of service. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea

Company Features

· The outstanding manufacturing ability of vacuum emulsifying machine has made Wuxi MAXWELL Automation Technology Co., Ltd well-known. We have stepped far ahead in the market.

· Our factory holds a wide range of advanced production facilities. These facilities are mainly introduced from the United States, Japan, and Germany and robust enough to ensure the smooth progress of our production plan.

· Our reliable quality of vacuum emulsifying machine will definitely satisfy you. Check it!

Application of the Product

Our vacuum emulsifying machine has a wide range of applications and can be used in a variety of situations and scenarios.

In addition to providing high-quality products, we also provide effective solutions based on the actual conditions and the needs of different customers.
