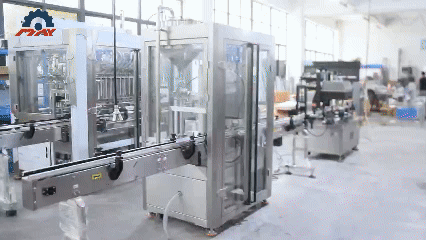

Single Head High Speed Filing Machine

Place of Origin: Wuxi,Jiangshu,China

Minimum order quantity: 1

Color: Sliver

Material: SUS304,SUS316

Packing: Wooden Case

Delivery time: 20-30 days

Model: Single Head, Double Heads, Customized

    oops...!

    no product data.

    Go to homepage

    Product Introduce

    1s high speed single head filling machine
    1s high speed single head filling machine
    5s high speed single head filling machine
    5s high speed single head filling machine
    2s high speed single head filling machine
    2s high speed single head filling machine
    2s (2)
    2s (2)

    Video Display

    Single Head High Speed Filing Machine 11

    Machine Parameters

    Model

    GHS-1

    Weight

    300kg

    Filling range

    50 ~ 1000ml

    Accuracy

    ±1%

    Filling speed

    20 ~ 40 bottles/min

    ( Base on 100 ~ 500ml)

    Power

    0.8kw , 220V

    Working air pressure

    6 ~ 7 kg/cm2

    Gas consumption

    0.5 ~ 0.7m3/min

    Certification

    CE

    Product Features

    Touch screen operation interface.

    Up and down movement type filling, effectively prevent the foam from being produced, easy to take apart and wash.

    The filling accuracy can reach +1%.

    The filling cylinder is ground, unique filling valve design, no leakage.

    No filling without bottle and automatic shutdown function for bottle accumulation.

    Design different positioning devices according to the actual situation of the bottle.

    The equipment is easy to clean and can be disassembled without tools. lt can also be cleaned online or sterilized at high temperature.

    PLC programmable control use Japan Mitsubishi.

    Frequency converter adopts France Schneider.

    Pneumatic components adopt Taiwan Airtac.

    Material contact parts are made of SUS304# stainless steel.

    The equipment meets the hygiene and safety standards. The user can choosethe glass protective cover.

    5s high speed single head filling machine

    Machine Details

    1. Anti-Foaming Filling NozzleWith servo motor diving filling system to achieve the defoaming filling function, and anti-dripping with mechanical cutting and air blowing design to avoid dripping or leakage. This design enable the machine to fill thick, thin, easy foaming and many kinds of products.

    2. High Precision Piston: Each stainless steel piston is polished from inside and outside, and 3mm thicker than regular piston. Such a workmanship will increase the cost, but the filling precision will become higher, service life longer, what's more less maintenance to do.

    3. Diversified Air Cylinder Design: Latest cylinder design to achieve Staggered Filling Function, it makes the filling speed 1.5 times faster than traditional design. All air cylinder will be adopted with international brand, such as Festo, Air TAC.

    4. Siemens PLC Touch Screen Smart Control: The filling speed and volume of each nozzle can be adjusted on the screen independently. For filling different products we can save the parameter in the screen as recipe, and one-button start when changing different packaging or products.

    5. Servo Motor Control: Servo motor control makes the filling precision better, and diving filling system more smooth. Also it would be much more convenient to change filling volume and height of filling nozzle.

    6. Electrical Cabinet: All the main parts of the machine will be adopted with international brand, such as Siemens, Schneider, Sick, Panasonic, etc. Long service life, easier to maintain and replace.

    d3s high speed single head filling machine
    d3s high speed single head filling machine
    d4s high speed single head filling machine
    d4s high speed single head filling machine
    d1s high speed single head filling machine
    d1s high speed single head filling machine
    d2s high speed single head filling machine
    d2s high speed single head filling machine

    Application

    Can be applied to food, pharmaceutical, daily chemical, pesticide, cosmetics and other industries of different bottle shape capping

    s1
    s2 (2)
    Single Head High Speed Filing Machine 19
