10L Explosion Proof Vacuum Double Planetary Mixer
Place of Origin: Wuxi,Jiangshu,China
Material: SUS304 / SUS316
Packing: Wooden Case / Stretch Wrap
Delivery time: 30-40 days
Model: 10L
The explosion proof double planetary mixer adopted advanced technology, which is widely used in dispersing mixing middle or high viscosity flammable and explosive materials.
In the mixing and degassing processes for new energy battery slurries (containing flammable materials like NMP solvents), fine chemicals (adhesives, resins, etc. containing flammable solvents), electronic materials (semiconductor encapsulation compounds, conductive silver pastes, etc.), pharmaceutical/cosmetic products with special requirements (certain ointments, creams, etc. containing organic solvents or flammable components), and military/aerospace applications (energetic materials, special propellants, high-performance composites), cosmetics (certain ointments, creams, etc. containing organic solvents or flammable components), and military/aerospace applications (energetic materials, special propellants, high-performance composites). A qualified and reliable explosion-proof planetary mixer is undoubtedly essential for ensuring safe production during the mixing and degassing processes.

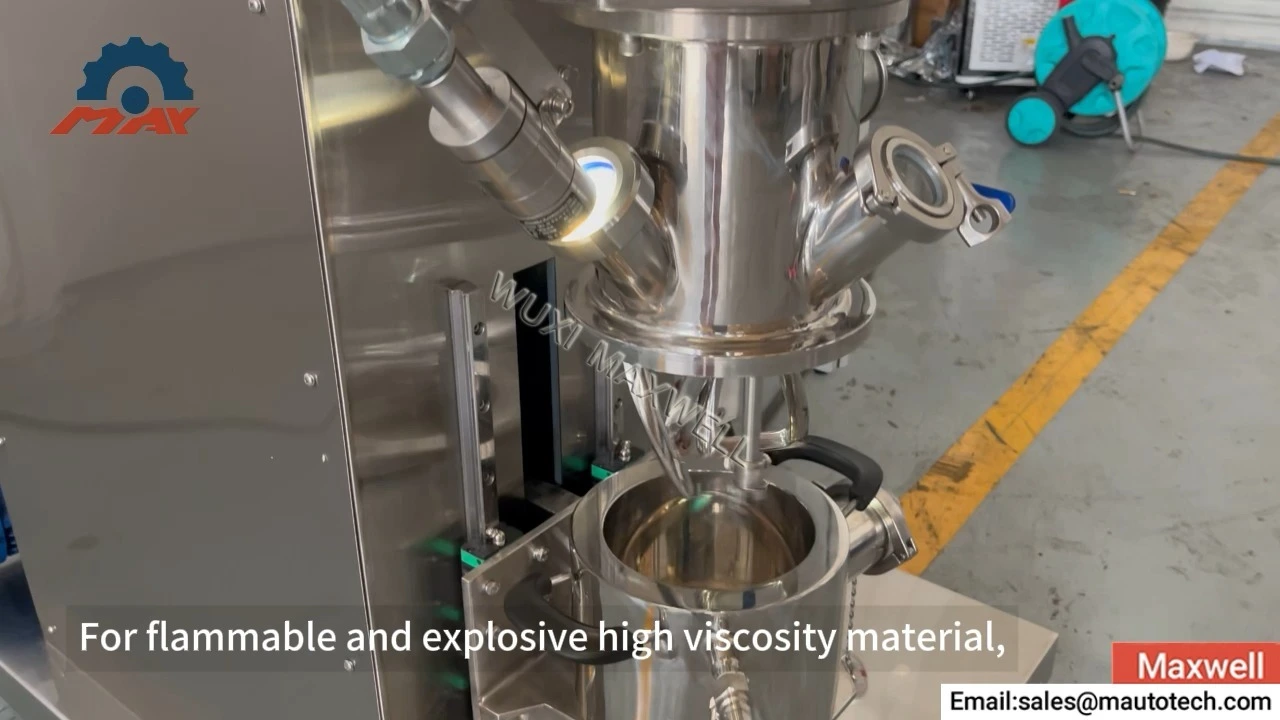

Video Display
Product Parameter
|
Tank work volume |
10L |
|
Revolution speed |
0～48 rpm Adjustable |
|
Mixing rotary speed |
0～100 rpm Adjustable |
|
Scraper speed |
0～48 rpm Adjustable |
|
Dispersion speed |
2980 rpm Adjustable |
|
Vacuum degree |
- 0.09 Mpa |
Machine Features
Product Details
* Double twist impeller / Blade impeller
Planetary Mixer Structure
● Double Twist Mixing Head
● Double-layer high speed dispersing head
● Scraper
● Emulsifying head ( homogenizer head )
● The mixing head combination forms are tailored for different process. Twist impeller blade, Dispersing disc, Homogenizer and Scraper are optional.
Working Principle
Planetary power mixer is a kind of new high-efficiency mixing and stirring equipment with no dead spot. It features unique and novel stirrer mode, with two or three stirrers as well as one or two auto scrapers inside the vessel. While revolving around the axle of the vessel, the stirrers also rotate around its own axis at different speeds, to achieve complicated movement of strong shearing and kneading for materials inside the vessel. Besides, the scraper inside the equipment revolves around the axle of the vessel, scraping the materials adhering to the wall for mixing and achieving better effects.
The vessel adopts special sealing structure, capable of pressurized and vacuumized mixing, with excellent exhaust and bubble removal effects. Vessel jacket can be heating or cooling according customer's requirements. The equipment is sealed excellently. The vessel cover can be hydraulically lifted and lowered, and vessel can be moved freely for ease of operation. Furthermore, the stirrers and scraper can rise with the beam and fully detach from vessel body, for ease of cleaning.
Product Description
1. Lifting system: The electric or hydraulic lifting table drives the mixing tank to seal and move.With multiple mixing tanks, the recipe can be adjusted at any time, suitable for various laboratories and start-up companies.
2. Spiral stirrer, scraper, dispersion plate: Various types can be configured according to customer requirements
3. Movable mixing tank: Double handle design, customized discharge port direction, easy to use.
4. Control system - Buttons or PLC: There is a digital time relay, which can adjust the speed and working time of the mixer according to the process and characteristics of different products. emergency button. The electrical control cabinet integrates all the power on, off, control,voltage, current, and frequency conversion speed of the machine, and the mixing time setting is reasonably centralized,and the operation is clear at a glance.
5. Optional Hydraulic press machine: The hydraulic press is the supporting equipment of the planetary mixer or the powerful disperser. Its function is to discharge or separate the high-viscosity rubber produced by the mixer. For Laboratory Planetary Mixing Machines,The press equipment can be separate or integrated with mixing and pressing of the material.
Application
Product Specification
| Type | Design volume |
Working volume |
Tank inner size | Rotary power |
Revolution speed | Self-rotary speed | Disperser power | Disperser speed |
Lifing | Dimension |
| SXJ-0.5 | 1.13 | 0.5 | 130*85 | 0.4 | 0-70 | 0-150 | 0.75 | 0-6000 | Electric |
|
| SXJ-1 | 1.9 | 1 | 150*120 | 0.4 | 0-70 | 0-112 | 0.75 | 0-2980 | ||
| SXJ-2 | 3 | 2 | 180*120 | 0.75 | 0-51 | 0-112 | 0.75 | 0-2980 | 800*580*1200 | |
| SXJ-5 | 7.4 | 5 | 250*150 | 1.1 | 0-51 | 0-112 | 1.1 | 0-2980 | 1200*700*1800 | |
| SXJ-10 | 14 | 10 | 300*200 | 1.5 | 0-48 | 0-100 | 1.5 | 0-2980 | 1300*800*1800 | |
| SXJ-15 | 24 | 15 | 350*210 | 2.2 | 0-43 | 0-99 | 2.2 | 0-2980 | 1500*800*1900 | |
| SXJ-30 | 43 | 30 | 400*350 | 3 | 0-42 | 0-97 | 3 | 0-2980 | 1620*900*1910 | |
| SXJ-50 | 68 | 48 | 500*350 | 4 | 0-39 | 0-85 | 4 | 0-2100 | Hydraulic | |
| SXJ-60 | 90 | 60 | 550*380 | 5.5 | 0-37 | 0-75 | 5.5 | 0-2100 | 1800*1100*2450 | |
| SXJ-100 | 149 | 100 | 650*450 | 7.5 | 0-37 | 0-75 | 11 | 0-2100 | 2200*1300*2500 | |
| SXJ-200 | 268 | 200 | 750*600 | 15 | 0-30 | 0-61 | 22 | 0-1450 | 2400*1600*2800 | |
| SXJ-300 | 376 | 300 | 850*650 | 22 | 0-28 | 0-56 | 30 | 0-1450 | 3300*1300*3400 | |
| SXJ-500 | 650 | 500 | 1000*830 | 37 | 0-24 | 0-48 | 45 | 0-1450 | 3700*1500*3500 | |
| SXJ1000 | 1327 | 1000 | 1300*1000 | 45 | 0-20 | 0-36 | 55 | 0-1450 | 4200*1800*3780 | |
| SXJ2000 | 2300 | 2000 | 1500*1300 | 75 | 0-13 | 0-35 | 90 | 0-1450 | 4500*2010*4000 |
