400ml 1:1 Resin Epoxy Glue Dual Cartridge Syringe Filling Machine
Place of Origin: Wuxi,Jiangshu,China
Minimum order quantity: 1
Color: Same as picture
Material: SUS304,SUS316
Packing: Wooden Case
Delivery time: 30-40 days
Filling Volume: 25ml 50ml 75ml 200ml 400ml 600ml adjustable
Ratio: 1 : 1 , 2 : 1 , 4 : 1 , 10 : 1
Product Introduce
The Semi-auto two component syringe dual cartridge filling machine is powered by Gear wheel pump, The glue is extracted from two buckets and filled into a small two-component cartridge, And the extension tube is extended into the bottom of the cartridge to fill the fluid with uniform motion, Which can prevent air from entering the material, When the sensor detects that the material reaches the capacity, It will immediately stop working to ensure the accuracy of the capacity.
It can filling into 25ml 50ml 75ml 200ml 400ml 600ml 250ml 490ml Two component Cartridges, Ratio:1:1 2:1 10:1 4:1, Please let me know your requirements.
Video Display
Product Parameter
|
Type |
MAX-F001 |
|
Pressure Barrel |
15L \ 30L Adjustable |
|
Power Supply |
220V / 50HZ |
|
Working air pressure |
0.4~0.7 MPa |
|
Filling Volume |
25ml 50ml 75ml 200ml 400ml 600ml adjustable |
|
Volume Precision |
±1~2% |
|
Speed |
120~600pcs/hour |
|
Dimensions(L×W×H) |
1200mm×1000mm*1600mm |
|
Weight |
Around 300kg |
Product Advantage

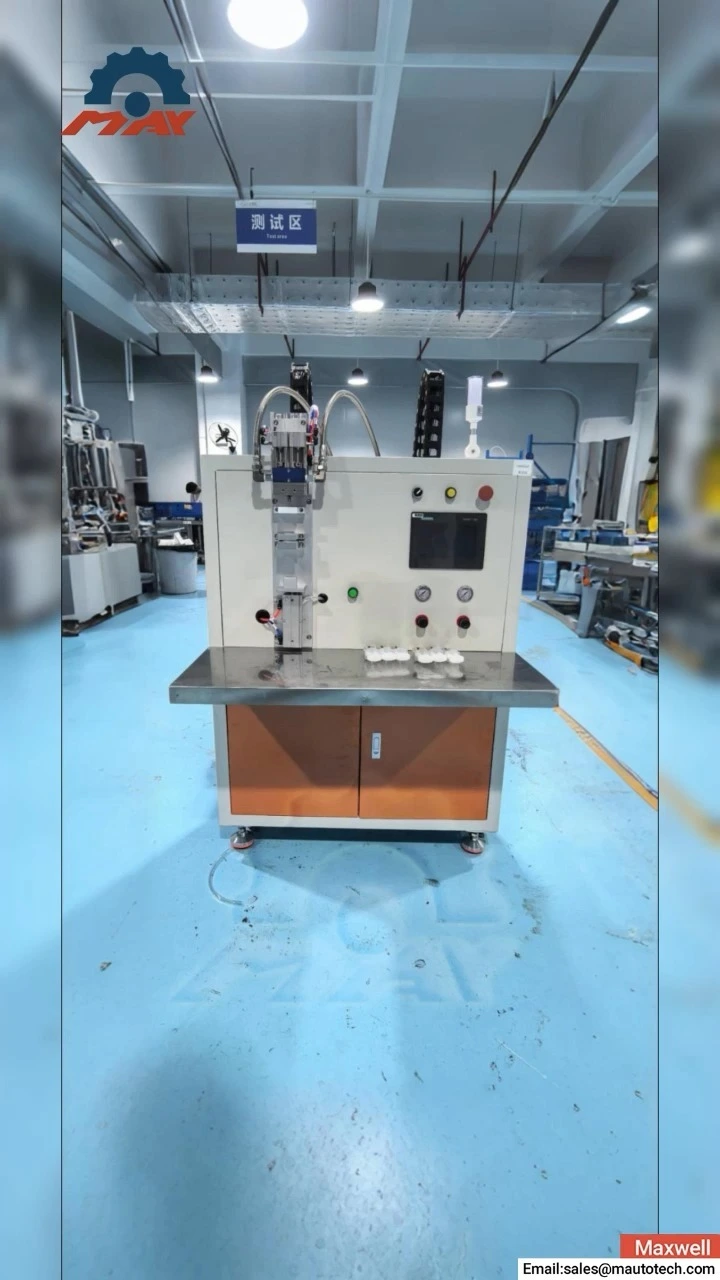

Dual Cartridge Filling Machine Structure
● ① Outlet valve
● ② Emergency stop button
● ③ Glue filling button
● ④ Fixture of AB cartridge
● ⑤ Glue quantity sensor
● ⑥ Glue sensor fixing screw
● ⑦ Pistion depth adjustment screw
● Press down piston button, Press down piston structure, Glue outlet tube, Touch screen,etc.
Application
This machine is suitable for AB adhesive, epoxy resin, polyurethane adhesive, PU adhesive, acrylic rubber, rock board adhesive, silicone, thixotropic silicone, sealant, planting glue, casting glue, silica gel, etc.
Factory advantage
In the application field of the multi-function mixer, we accumulated a wealth of experience.
Our product combination include the combination of high speed and high-speed, the combination of high-speed and low-speed and the combination of low-speed and low-speed. High-speed part is divided into high shear emulsification device, high-speed dispersion device, high-speed propulsion device, butterfly stirring device. Low-speed part is divided into anchor stirring, paddle stirring, spiral stirring, helical ribbon stirring, rectangular stirring and so on. Any combination has its unique mixing effect. It also have vacuum and heating function and temperature inspect function
