Cream Mixer Machine - - MAXWELL-1

Product Introduce

Realize the process of material dispersion, emulsification, homogenization and mixing under vacuum or pressure environment.  It can be equipped with a variety of high-viscosity stirrers, high-shear homogenizers, and reliable vacuum sealing systems and temperature control systems.  Various sensing and detection systems can simulate industrial production in a laboratory environment.

At present, the laboratory processing capacity is: 1L, 2L and other series.  It is used for dispersion, mixing, emulsification, homogenization, stirring and dissolving in the laboratory.  The whole reaction process of stirring, homogenizing, emulsifying, dispersing, mixing, etc. of the material can be observed through a glass kettle under vacuum or pressure conditions, and it can also be homogeneously emulsified and dispersed by stainless steel pressure and high temperature.

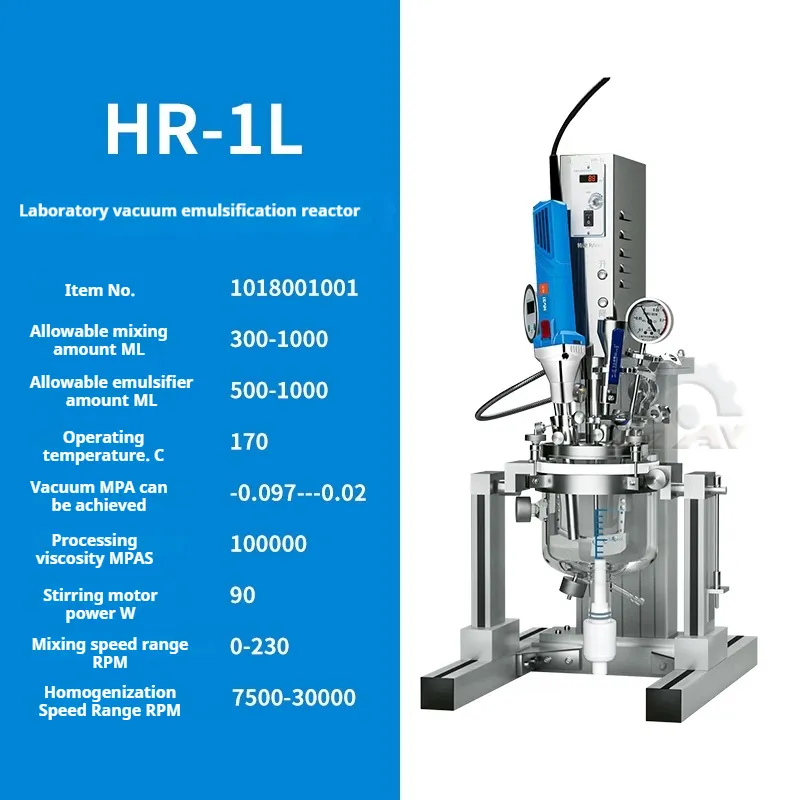

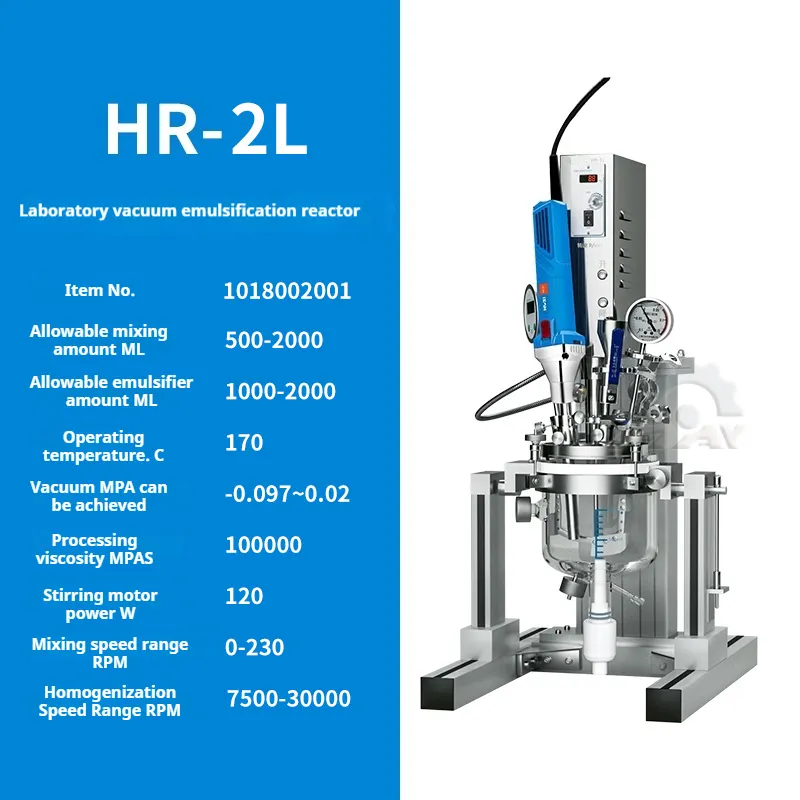

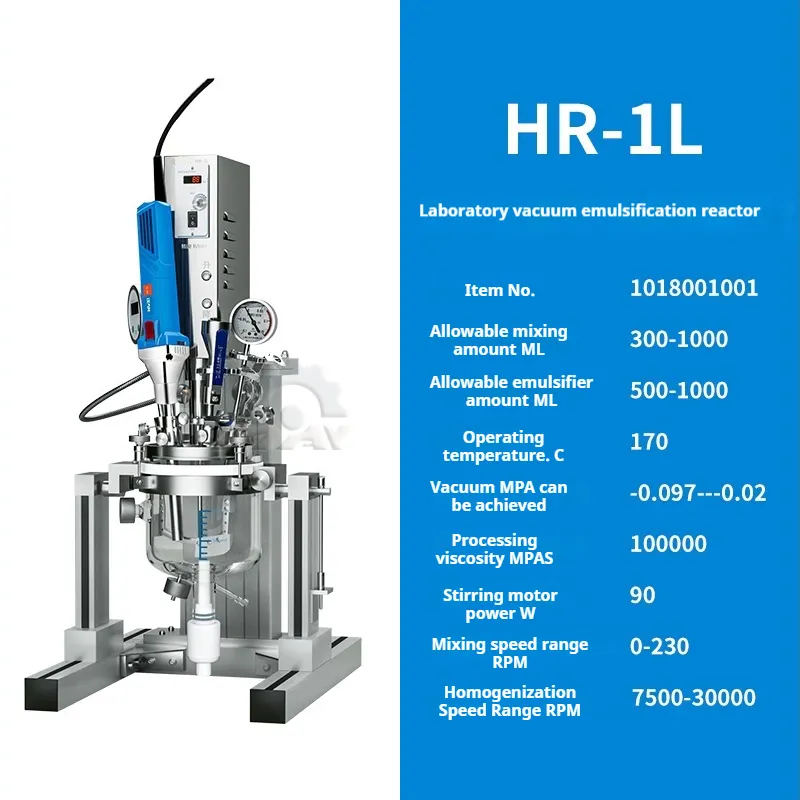

3s 1L 2L Vacuum Emulsifying Reactor

2s 1L 2L Vacuum Emulsifying Reactor

4s 1L 2L Vacuum Emulsifying Reactor

6s 1L 2L Vacuum Emulsifying Reactor

Working Principle

Put the materials into premix tank oil phase tank and water phase tank,after heated & mixed in water tank and oil tank, it can drawn the materials into emulsifying tank by vacuum pump. Adopting the middle stirrer & Teflon scrapers residues in emulsifying tank that sweep the residues on the wall of the tank to makes the materials wiped off become the new interface constantly.

Then the materials will cut off, compressed and fold by the blades to stir, mix and run to the homogenizer. By the strong cutting off, impact and turbulent current from the high-speed shear wheel and fixed cutting case, the materials are cut off in interstices of stator and rotor and turn to particles of 6nm-2um promptly. Because the emulsifying tank is working under the vacuum state, the bubbles that produces in the process of mixing is taken away in time.

图片1 (4)

图片2 (5)

Product Features

1

1

Mix solids such as calcium carbonate, talc, titanium oxide, etc. with the emulsion;

2

High shear dispersion emulsification or polymer polymerization reaction stirring in lithium battery industry;

3

Grinding and dispersing solids and fibers in liquids and polymers. Such as glue strong vacuum stirring;

4

It can measure the temperature, pressure, viscosity, PH, etc. of materials at the same time. The material can also be heated or cooled.

Emulsifying machine structure diagram



Product Description

Application

Chemical Products

Soap,plain bar soap,long-bar soap,laundry soap,Handmade soap,cold process soap Toilet soap,Body Whitening Soap ,Organic Natural soap,Liquid Soap,Hand Washing,Shampoo, Hand Sanitizer,detergent,, conditioning shampoo.hair conditioner,liquid Shampoo , Disinfectant, Disinfectant fluid,Alcohol disinfectant,Chemical.

Personal Hygiene Products

Shower gel , Body Wash , Bath Cream , Shower Foam , Bath Gel ,Moisturizing Lotion , Body Lotion, Baby Emulsion , Emollient Lotion,Moisturizer ,,Stretch Oil , Brightening Moisturizing Emulsion , Sugar Scrub , Baby Skincare Softener , Scrub Cream ,Facial Scrub , Abrasive , Scrubs , Daily Exfoliating Cream , Facial Scrub , Cleansing Gel , Facial Cleanser , Face Wash , Cleanser , Cleansing Foam ,Facial Foam , Gentle Cleansing Lotion , Toothpaste, Dental Cream ,Collutory , Mouthwash , Collutorio , Das Mundwasser.

Skin Care Products

Toner, Toning Lotion , Astringent , Mild Lotion , Suntan Oil , Sun Screen , Suntan Lotion , Sunblock ,Sunburn Cream, Anti-Wrinkle Cream , Facial Essence , Essence , Water Gel , Night Concentrate , Hydrating Gel , Face Oil , Skin Oil , Eye Gel ,Smoothing Toner, Extra Cream , Age-delay Cream , Night Cream , Retinal Moisturizer , Cream,Neck Cream , Facial Serum ,Face Cream,Facial Cream,Petro Leum Jellly , Petrolatum, Jelly Body Cream , Ointment , Butter Cream , Shea Butter Cream,Liquid Foundation ,Liquid Makeup , Fluid Foundation , BB Cream ,Sleeping Pack , Sleeping Mask , Water Sleeping Pack , Face Mask , Facial Mask ,Cosmetic.

Food

Cubilose , Ketchup , Catchup , Tomato Ketchup , Tomato Catchup , Tomato Paste ,Salad Dressing ,Thousand Island Sauce , Peanut Butter ,Cheese , Honey , Chilli Sauce , Chilli Paste , Mushroom Organic Sauce , Bearnaise , Russian dressing ,Remoulade , Maionese , Mornay Sauce , Milk , Drink.

Company Advantages

· Material of cream mixer machine is highly prized in Wuxi MAXWELL Automation Technology Co., Ltd. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea

· In the production process, advanced testing equipment is used to test the products to ensure the high performance and consistency of the products. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea

· Wuxi MAXWELL Automation Technology Co., Ltd is a company with mature sales network who makes the shopping experience more convenient. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea

Company Features

· With years of commitment to cream mixer machine production, Wuxi MAXWELL Automation Technology Co., Ltd has been acting flexibly to the market and gained recognition.

· We have a responsible R&D team. They continually monitor and analyzes the trends in the cream mixer machine market. Their extensive R&D activities let the company quickly develop products with new functions that meet emerging customer needs.

· Wuxi MAXWELL Automation Technology Co., Ltd aims to lead the commercial trend with innovative spirit and bring long-lasting value with high-quality products. Get price!

Application of the Product

The cream mixer machine managed by MAXWELL is widely used in industry.

Our solutions are developed by understanding the customer's situation and combining the current market conditions. Therefore, they are all targeted and can effectively solve problems of customers.
