Emulsion Mixer - - MAXWELL
Product details of the emulsion mixer
Product Description

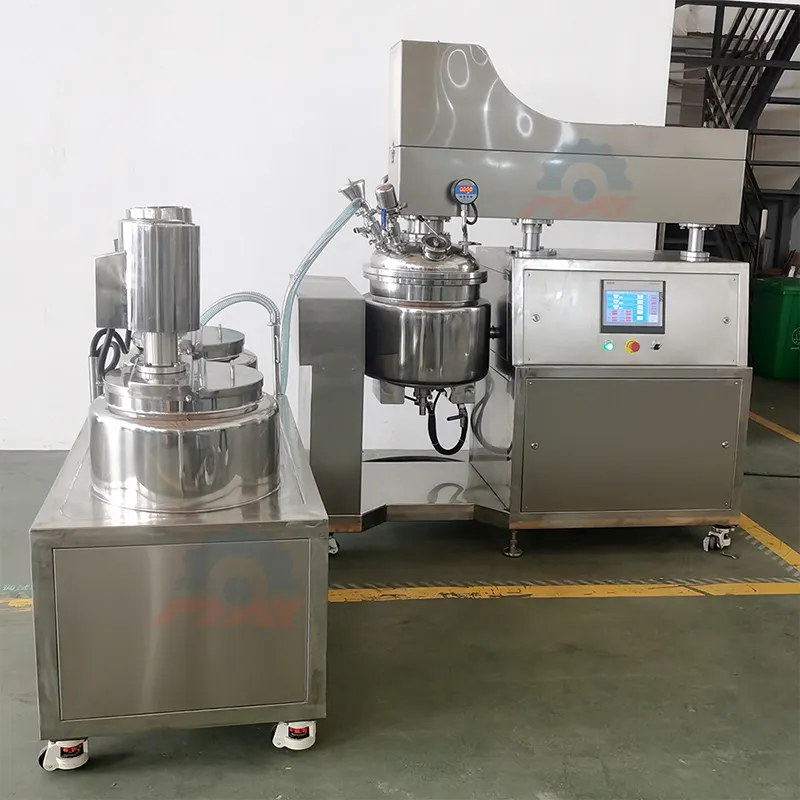

MAXWELL emulsion mixer is of exceptional design and high-quality materials. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea Its quality meets the design specifications and customer's requirements. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea The product has gained the popularity among the customers and is bound to be widely accepted. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea
Product Introduce
The cover of the pot is of automatic lifting type, the materials in the water and oil pots can directly enter the emulsifying pot under vacuum through the conveying pipeline, the discharging mode is the emulsifying pot turning type and the bottom valve discharging type, etc. The heating of the materials is realized through the electric heating pipe heating the heat-conducting medium in the pot mezzanine, and the heating temperature can be arbitrarily set and automatically controlled.
The material can be cooled by accessing the coolant in the jacket, which is easy and convenient to operate, and there is a heat preservation layer outside the jacket. Homogenizing system and mixing system can be used separately or at the same time. Particulation, emulsification, mixing, blending and dispersing of materials can be completed in a short time. The part in contact with materials is made of high quality stainless steel (commonly used 304, 316L for medical use), the inner surface is mirror polished, the vacuum stirring device is hygienic and clean, and it is manufactured in accordance with the hygiene standard of GMP norms, which is the ideal cream production equipment for customers.
Video Display
Product Parameter
|
Scraping stirring speed |
10-120 rpm Adjustable |
|
Homogenizing rotation speed (r/min) |
3000 (r/min) |
|
Heating Method |
Steam Heating Or Electric Heating |
Working Principle
Put the materials into premix tank oil phase tank and water phase tank,after heated & mixed in water tank and oil tank, it can drawn the materials into emulsifying tank by vacuum pump. Adopting the middle stirrer & Teflon scrapers residues in emulsifying tank that sweep the residues on the wall of the tank to makes the materials wiped off become the new interface constantly.
Then the materials will cut off, compressed and fold by the blades to stir, mix and run to the homogenizer. By the strong cutting off, impact and turbulent current from the high-speed shear wheel and fixed cutting case, the materials are cut off in interstices of stator and rotor and turn to particles of 6nm-2um promptly. Because the emulsifying tank is working under the vacuum state, the bubbles that produces in the process of mixing is taken away in time.
Product Features

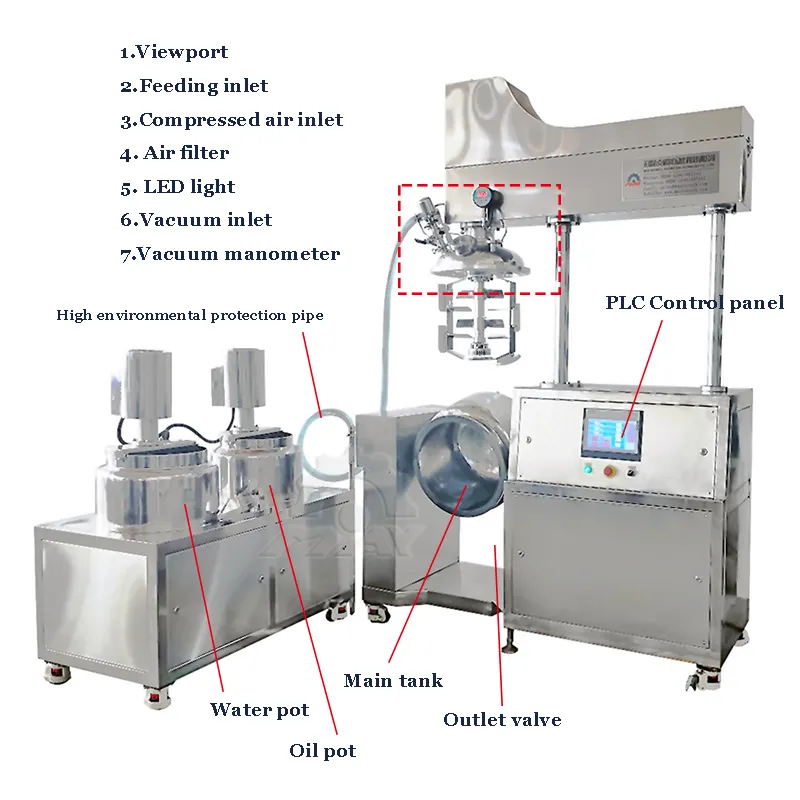

Emulsifying machine structure diagram
Product Description
1. Mixing Paddle: Two-way wall scraping and mixing :Mix materials quickly,and it is very easy to clean,saving cleaning time.
2. Tank: 3-Layer stainless steel structure pot body,GMP standard engineering,sturdy and durable,good anti-scalding effect.
Steam heating or electric heating according to customers' requests.

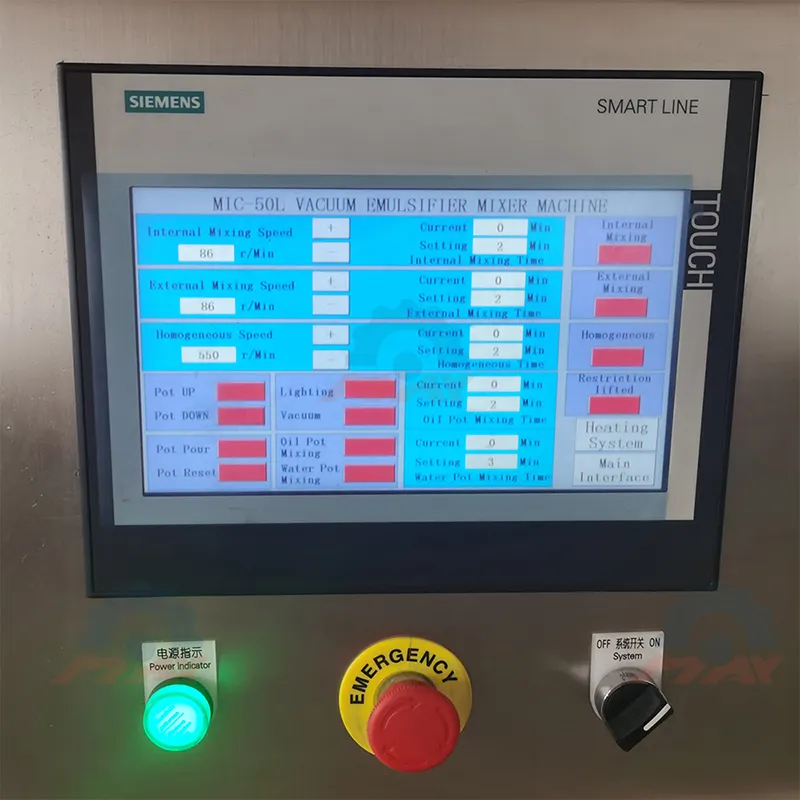

3. Console Buttons: (Or PLC touch screen) control vacuum,temperature,frequency and time setting system
Application
Company Feature
• Since the beginning in our company has continuously improved our production process and product quality, and gained industry recognition with high-quality products.
• MAXWELL puts customers first and runs the business in good faith. We are dedicated to providing quality services for customers.
• MAXWELL's products sell well in many parts of the country. They are also exported to the EU, Southeast Asia, the Americas, and other regions.
• MAXWELL has professional R&D teams and unique advantages in technology development.
MAXWELL believes that the qualified product serves as the cooperation foundation. We provide more timely, more accurate and more professional services. We sincerely invite people from all walks of life to cooperate with us!
