Filling Machine - - MAXWELL-4
Company Advantages
· MAXWELL filling machine is available in varied designs and patterns. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea
· The product has stable performance and long storage time. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea
· Wuxi MAXWELL Automation Technology Co., Ltd possesses strong local resource advantages. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea
Filling Line Introduce

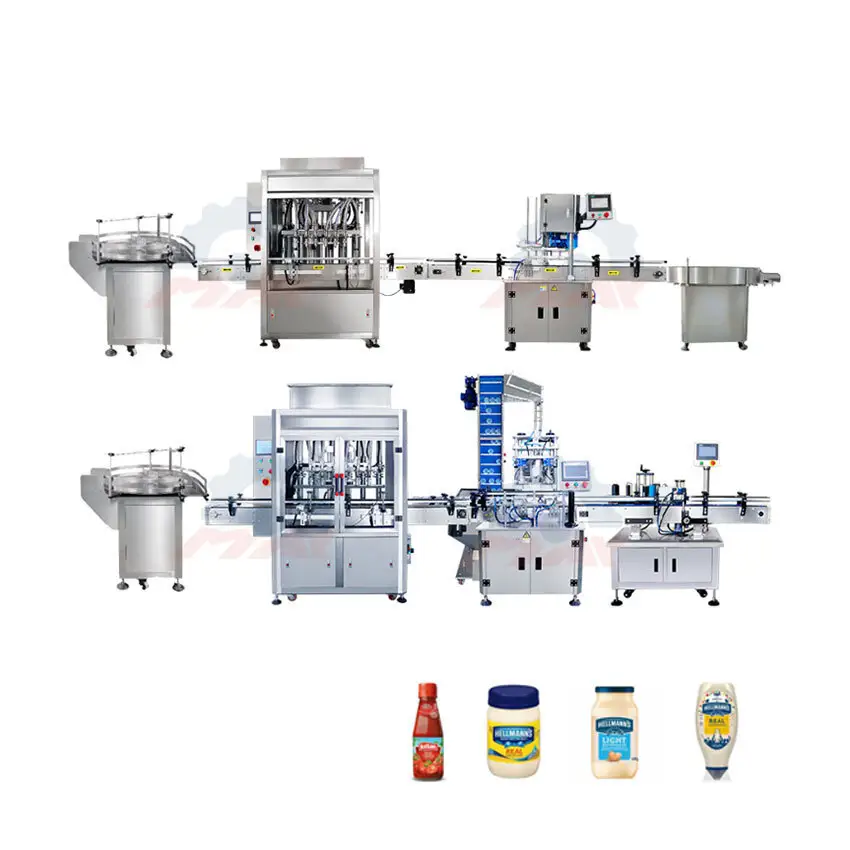

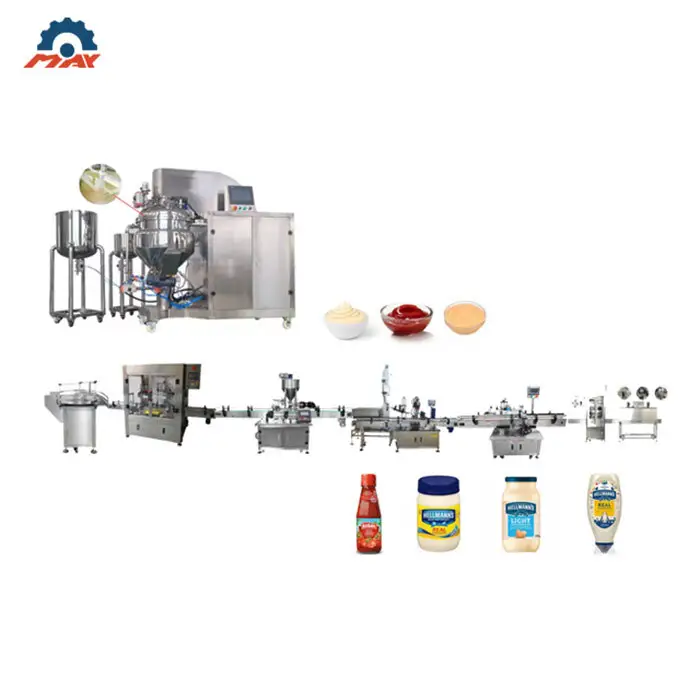

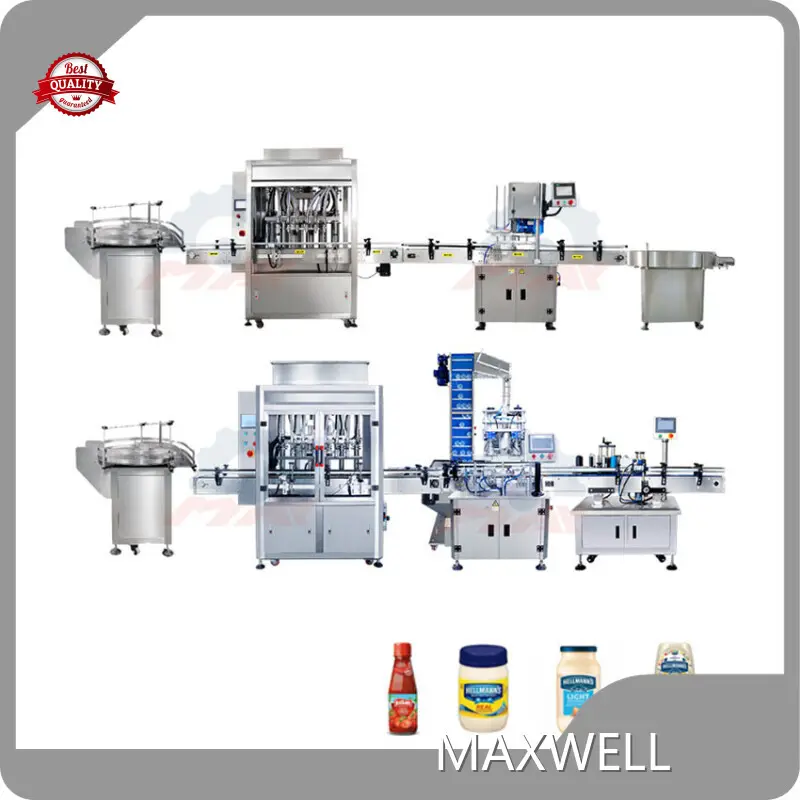

Mayonnaise Filling Line
The target market of our brand has been continuously developed over the years. Now, we want to expand the international market and confidently push our brand to the world.
1. Bottle Sorting Machine Parameter
● Turntable diameter : 800mm
● Canning speed : 30-50 cans/minute
● Power supply : 220V, 50HZ, 0.18KW
● Overall Dimension : 1000mm W 800mm H 1200mm
● Function : Organize and arrange the bottles or cans placed manually

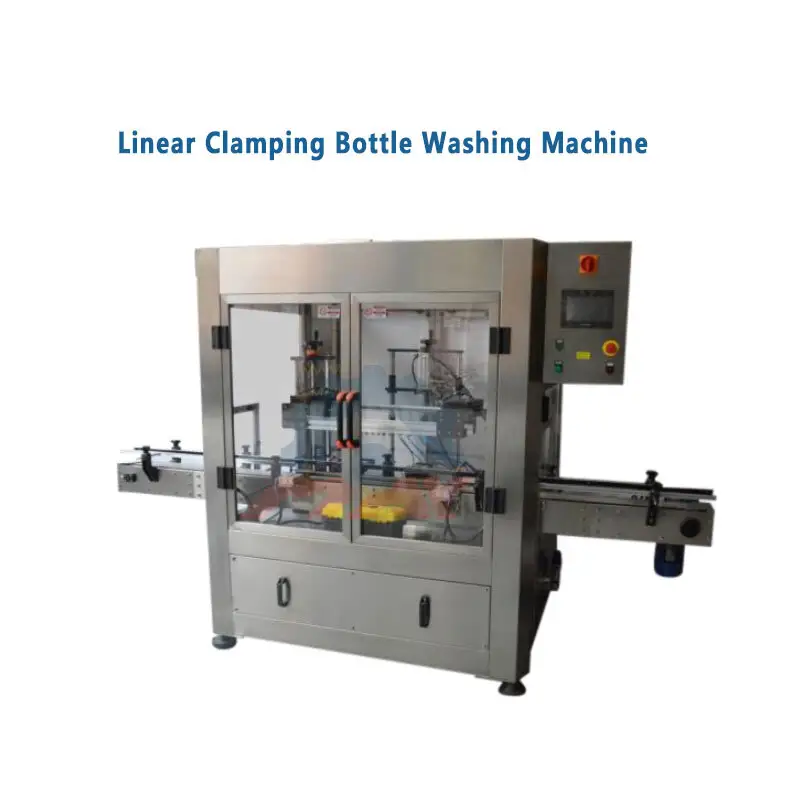

2. Automatic Bottle Washing Machine Parameter
● Working pressure : 0.5-0.7Mpa
● Power : 1.2kw
● Voltage : 220V
● Production capacity : 1500-1800 bottles/hour

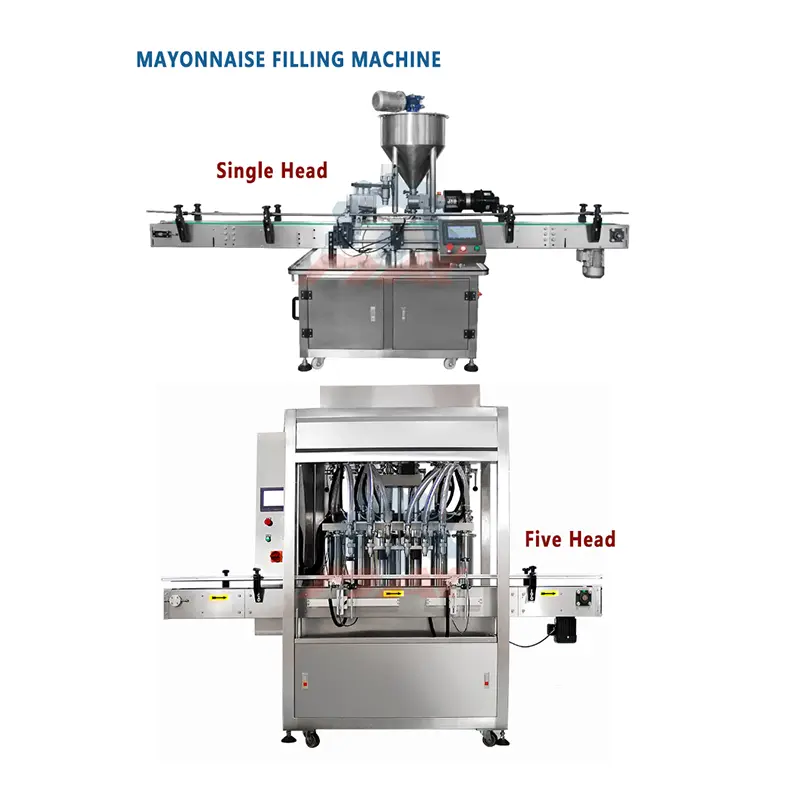

3. Mayonnaise Filling Machine Parameter
● Filling capacity : 1000-5000ml (can be customized)
● Filling speed : 20-25 bottles / min
● Voltage : 380V
● Motor power : 2KW
● Air consumption(MIN) : 4KGS×30LITER
● Air pressure : 0.6-0.8mpa

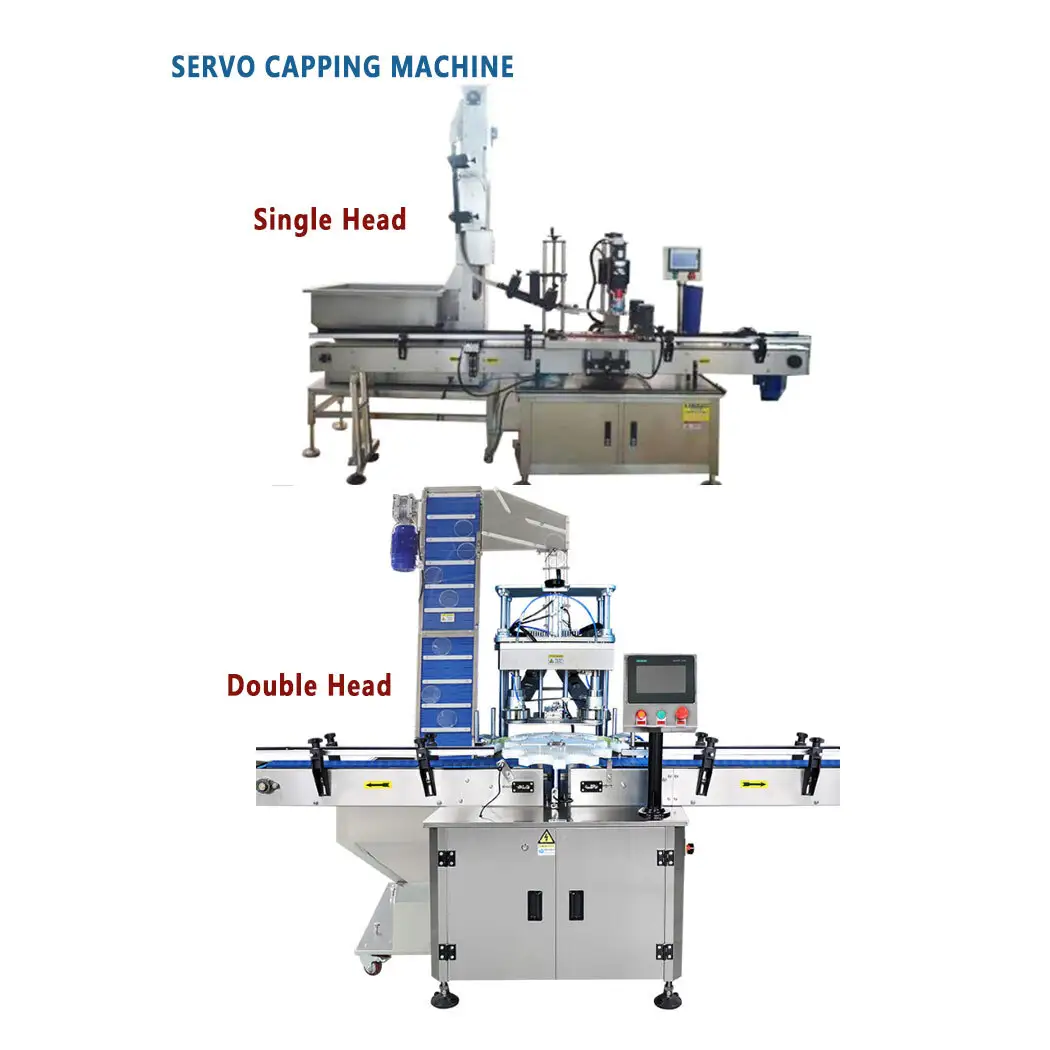

4. Servo Capping Machine Parameter
● Power supply voltage : AC 220V/50HZ
● Power : 1500W
● Adaptable cap diameter : within 100mm (can be customized)
● Working air pressure : 0.5-0.7mpa
● Production capacity : 15-30 bottles/minute

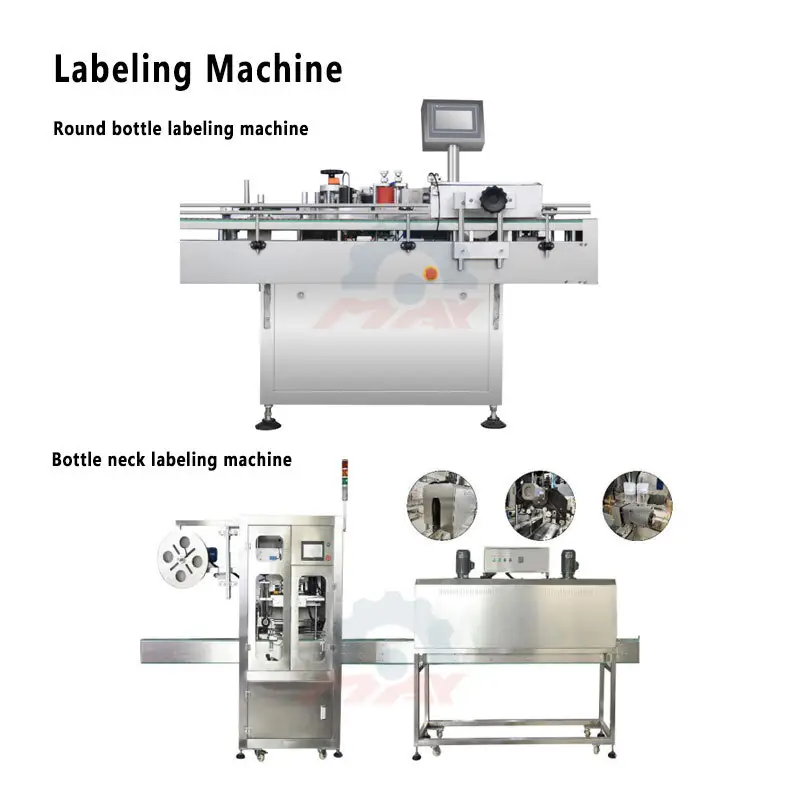

5. Round Bottle Labeling Machine Parameter
● Power supply voltage : AC 220V/50HZ
● Power : 1200W
● Applicable product range : outside diameter 30-100mm height 30-200mm
● Applicable labeling range : height 15-130mm
● Production capacity : 25-50 bottles/minute
5-2. Bottle Neck Labeling Machine (including shrink machine)
Parameter
● Registering speed : around 0-120P/min
(depending on the size of the product and label)
● Marking accuracy : ±1mm (excluding product labeling and other errors)
● Applicable product size : Diameter φ25mm～φ110mm
Height 30mm～280mm
● Applicable label range : Length 20～260mm
● Maximum label supply : Outer diameter 500mm
Inner diameter 76mm
● Ambient Temperature : 0-50℃
● Humidity : 15-85%
● Voltage specification : AC220/380V, 50HZ
● Width : 5000mm
● Height : 2000mm
● Weight : around 300KG
Application
Widely used in: Salad Dressing, Custard Dressing, Cheese, Dressing, Mayonnaise, Costa Sauce, Pastry Sauce, Baked Rock Sauce, Mustard Sauce ,Cheese sauce, Ketchup, Chocolate, Pet Nutrition Cream, etc.
Company Features
· Wuxi MAXWELL Automation Technology Co., Ltd is the first-choice partner for customers in filling machine manufacture industry.
· Our company has an experienced and leading-edge team of professionals. They are skilled in manufacturing, project planning, budgeting, management and paying meticulous attention to every detail. We have a number of senior engineers and technical support. They are highly qualified and equipped with many years of experience in the field of filling machine. Their abilities enable them to tackle customers' problems easily.
· Wuxi MAXWELL Automation Technology Co., Ltd is committed to satisfying every customer with good service. Ask online!
Application of the Product
MAXWELL's filling machine can be used in multiple industries.
MAXWELL provides comprehensive and reasonable solutions based on customer's specific situations and needs.
Enterprise Advantages
MAXWELL has a professional team integrates management, R&D, production, inspection, marketing, and after-sales service. This lays a solid foundation for the development.
Our company's professional service team provides all-round professional and suitable services for customers according to the different needs of each customer.
Our company strives to provide high-value products and services for the society, based on the spirit of 'passion, innovation, hard work'. We operate our business by sticking to integrity management and we believe that cooperation brings mutual benefit.
Since the establishment in our company has had a production history of years. Now, our production technology and experience are at the leading level in the industry.
Apart from making own traditional superior products, our company actively explores more markets and optimizes product allocation. At present, our products are not only sold well in China, but also exported to many foreign countries.
