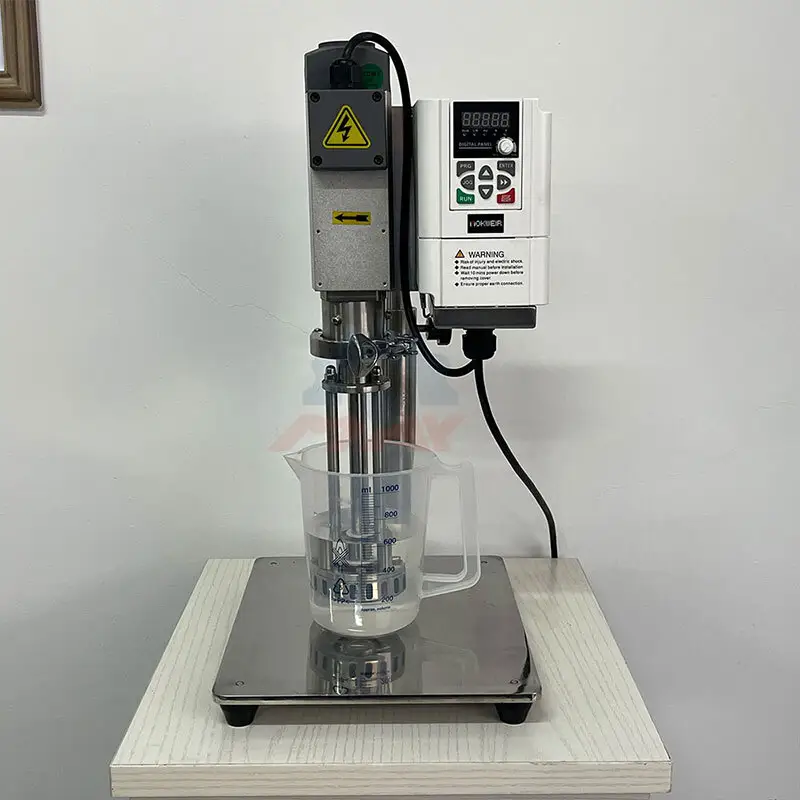

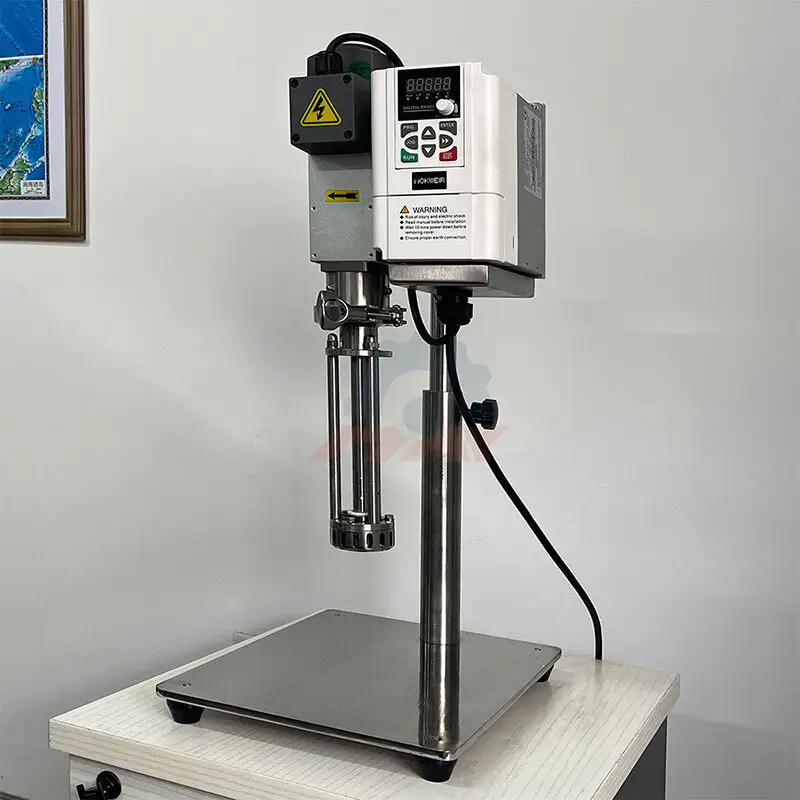

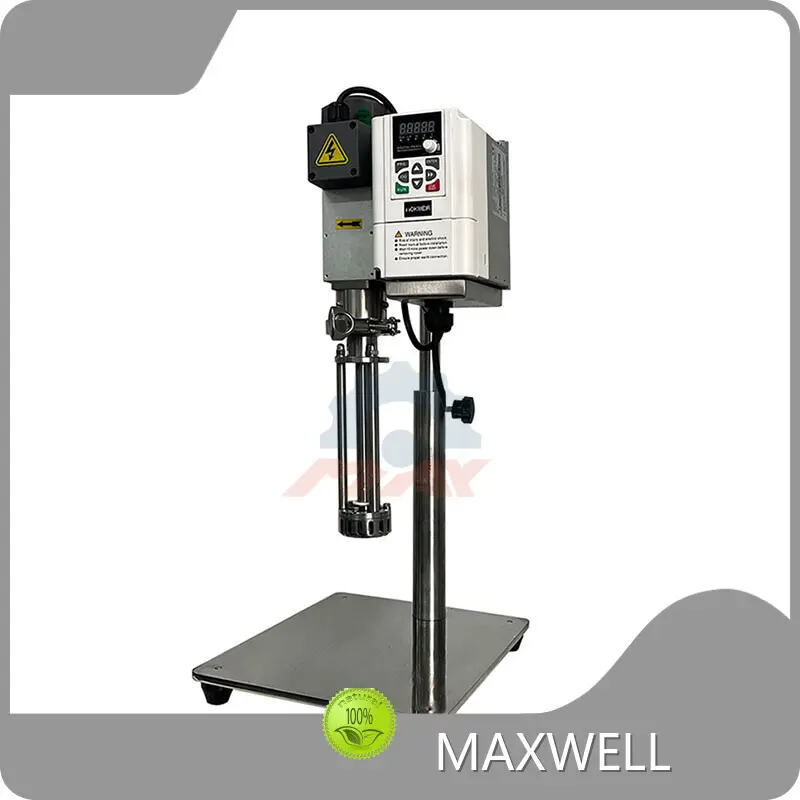

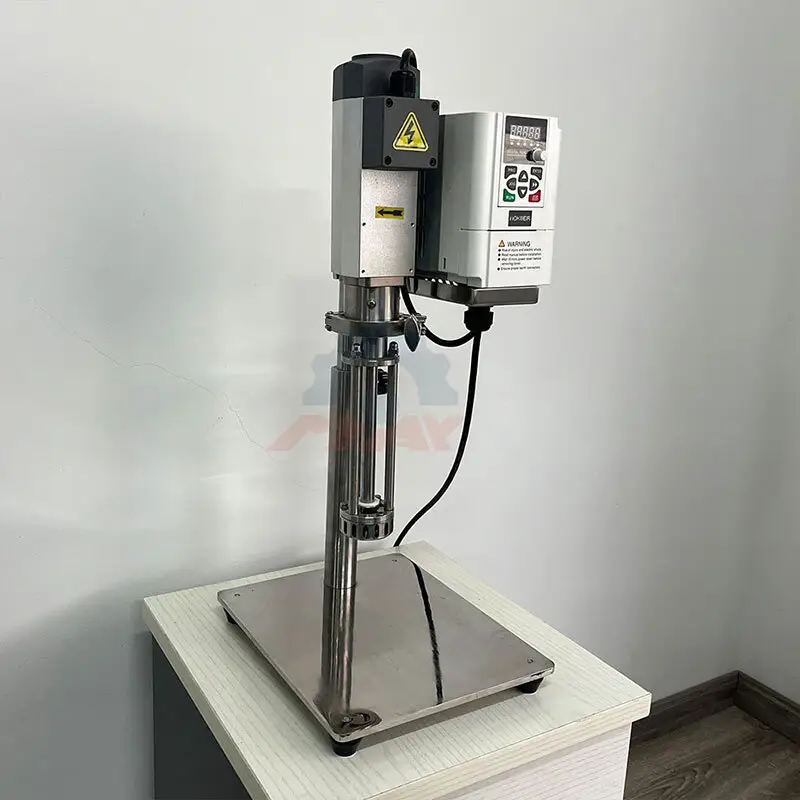

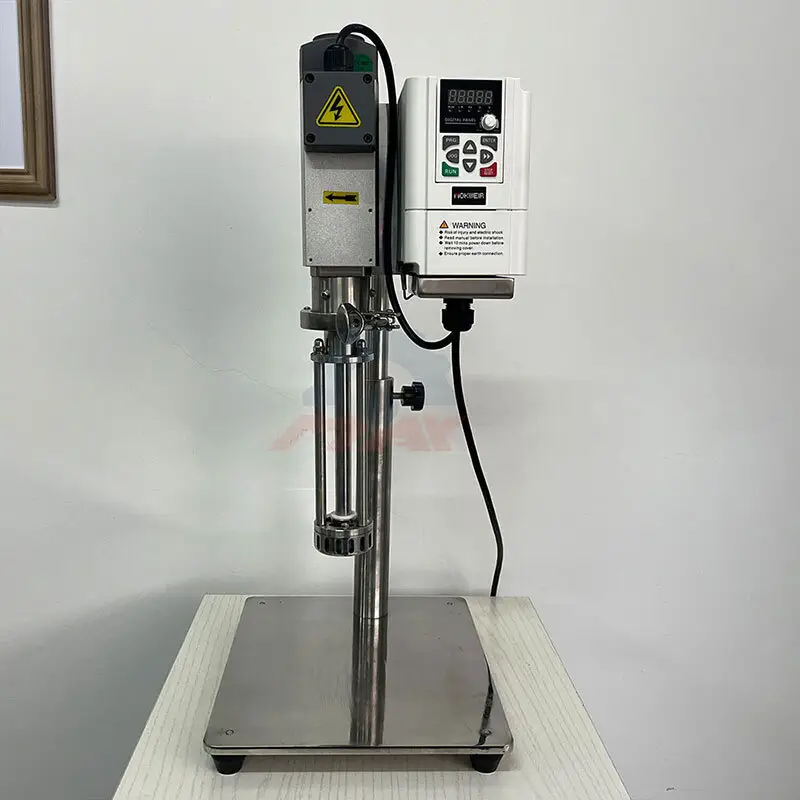

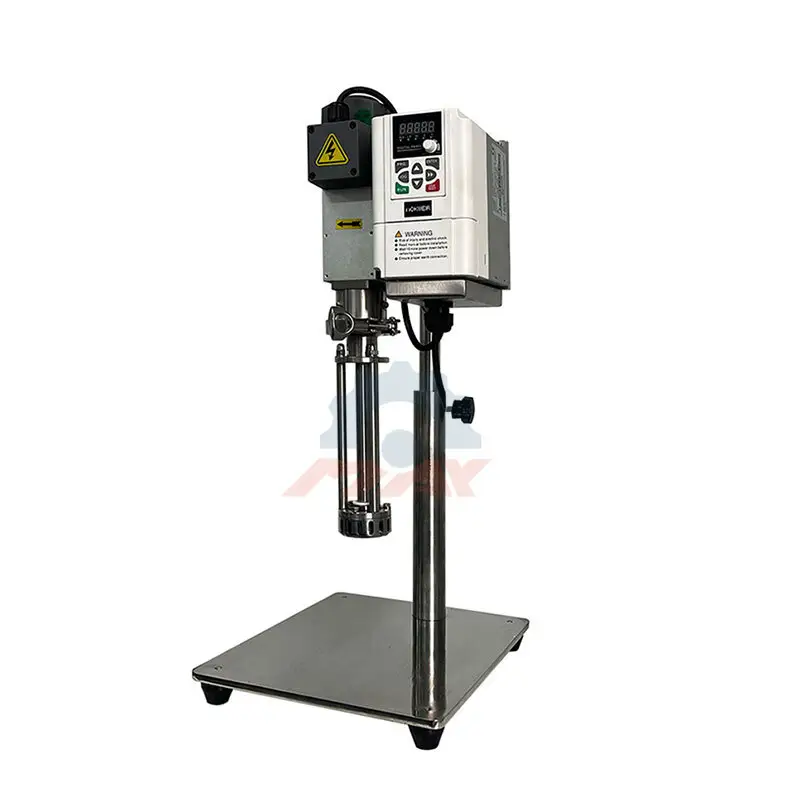

High Shear Homogenizer by MAXWELL
Product details of the high shear homogenizer
Product Introduction
MAXWELL high shear homogenizer is elaborately designed by innovative experts who know well about the market changing demands. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea Product quality has passed a number of international certification. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea Wuxi MAXWELL Automation Technology Co., Ltd's simple and efficient one-stop marketing service system can let customers trust us all the time. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea
Product Introduce
To disperse,emulsify and homogenize slight materials.Widely used in the lab to do the experimentation,produce the model,and develope new product. Suitable for most ingredients, it is used to homogenise and emulsify creams of medium and low viscosity. The special stator and rotor generate strong cutting, milling, beating and turbulence, so that water and oil are emulsified. The granule diameter then achieves a stable condition (120nm-2um) .
Video Display
Product Parameters
|
Type |
JR-T-0.75 |
|
Voltage |
220V |
|
Power |
0.75 KW |
|
Speed |
0 -12000r/min |
| Motor |
High Speed Precision Motor |
|
Control |
Speed control by inverter |
|
Capacity |
10-8000mL |
|
Lift |
Manual lift |
|
Material |
The part contact with the material is SU304/SUS316L |
|
Falsework |
Stainless steel, Carbon steel |
|
Axle Sleeve |
PTFE |
|
Dimension (L*W*H) |
300mm*250mm*660mm |
|
Weight |
20KG |
|
Features |
1. digital display, stepless speed adjustment. 2. the working head can take-down quickly and convenient to clean. 3. claw-structure,bi-direction absorption, will get good effect in short minutes. |
|
Application |
To disperse,emulsify and homogenize slight materials.Widely used in the lab to do the experimentation,produce the model,and develope new product. |
Dispersing Emulsifier Working Process
The emulsifier adopts specially designed rotor and stator driven by motor at high speed, the processed material is sucked into the rotor, due to the strong kinetic energy brought by the high frequency mechanical effect produced by the rotor rotating at high speed, so that the material is subjected to strong mechanical and hydraulic shear, centrifugal extrusion, friction of the liquid layer, high-speed collision tear and turbulence under the combined effect of splitting, crushing and dispersing in the precision gap between the stator and rotor, and in a short period of time, the material will be subjected to hundreds of thousands of such shear effect, so that the immiscible material can be evenly and finely emulsified, crushed and dissolved instantly. The material is subjected to hundreds of thousands of times of this shearing effect, so that the immiscible material in an instant uniformly fine to achieve the effect of emulsification, crushing, solution.
Machine Advantage
Choose us, and we promise to do everything needed to ensure a successful and satisfactory working partnership. The 6 reasons set out below will give you an insight into our advantages.
Optional Accessories
Structural Dismantling
Disassemble the internal structure of the homogenizer in detail
Application
Suitable forstirring, dissolving and dispersing all kinds of liquids in laboratoryand fordissolvingand dispersinggrindingof high viscosity materials.
Company Advantage
• MAXWELL attaches great importance to service. We are committed to providing excellent service for customers based on professional service know-how.
• The condition of our company's geographic position is superior with multi traffic lines. We provide convenience for the outward transportation of various products and guarantee the stable supply of goods.
• We have a broad market for our products. They are currently sold well in various regions at home and abroad.
Dear customer, if you have any needs, please call MAXWELL. We will communicate with you and provide relevant service.
