High Viscosity Mixer by MAXWELL
Product details of the High viscosity mixer
Quick Detail
MAXWELL High viscosity mixer is made up of superior raw material using the latest technology. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea This product must go through our quality inspector's internal quality assurance procedure to ensure non-defective quality. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea The High viscosity mixer produced by MAXWELL has a wide range of applications. Quality assurance of High viscosity mixer is necessary in MAXWELL. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea
Product Information
MAXWELL's High viscosity mixer has more advantages over similar products in terms of technology and quality.
Product Introduce
Functional features:
1, high speed linear speed: up to 25M/S, the dispersion time is greatly shortened; The effect is good, and the particle size of the battery slurry after mixing is small and the consistency is high.
2, low noise precision assembly: parts with high compatibility, low wear; Under full load operation, the noise from 1 meter away is less than 80 dbA, creating a low noise working space.
3, high sealing shaft sealing design: pressure vacuum resistance to 1.5BarA, high vacuum retention, to ensure zero pollution in the mixing process.
4, low clearance: mixing paddle reference kneading principle, on the basis of traditional functions to strengthen the kneading effect, so that the material in a short time of rapid mutual penetration, kneading, homogenization. The clearance between the paddle and the inner wall of the barrel, the clearance between the paddle and the paddle, the paddle and the wall of the barrel, the paddle and the bottom of the barrel is reasonable; The bottom of the mixing paddle has a scraping bottom design, and the roundness of the barrel is high, less than 0.2mm.
5, high strength, large torque output: the strength is strictly calculated, suitable for high viscosity, high solid content of lithium ion power battery positive and negative slurry (lithium iron phosphate, lithium manganate, lithium cobalt, etc.). The impeller is made of stainless steel 316L precision casting (more than 650L is made of special steel, with micro-deformation self-repair ability, so that the impeller will not be deformed due to long-term high torque operation), the output torque is calculated by computer simulation, and the strength is high. Suitable for high viscosity, high solid content of lithium ion power battery positive and negative slurry (lithium iron phosphate, ternary, ternary high nickel, potassium manganate, lithium cobalt, etc.), can adapt to different processes (dry mixing, wet mixing).
6, easy to clean surface polishing degree is not less than Ra0.32; Dispersing and mixing adopt quick disassembly structure, easy to clean.
7, high system integration premix, mixing, turnover, filtration and other links seamless quick docking, automatic control, no contact with the air.
Video Display
Technological process

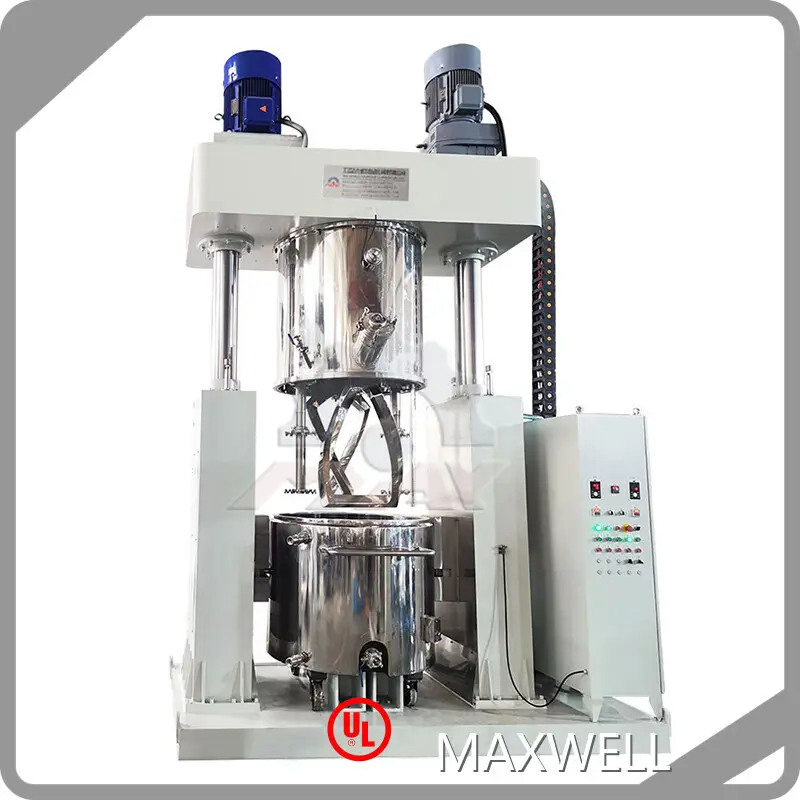

Double planetary vacuum power mixer is equipped with low-speed mixing parts and high-speed dispersion parts, low-speed mixing parts are driven by planetary gear, mixing paddle in the revolution also rotation, so that the material up and down and around the movement, so as to achieve the ideal mixing effect in a short time. The high-speed dispersion parts orbit together with the planetary frame, and at the same time, the high-speed rotation makes the material subject to strong shear and dispersion mixing, and the effect is several times that of the ordinary mixer. The dispersion parts are divided into single dispersion shaft and double dispersion shaft, which can be selected by customers according to their needs. Two double-frame agitators rotate and rotate at the same time in the barrel body, which can realize vacuuming, heating, cooling, and speed adjustment according to the situation, and can be operated with multiple mixing barrels. Matching press makes discharging more convenient.
How it works
During the working process of the double planetary vacuum power mixer, two parallel mixing paddles operate according to the fixed rotation ratio set, and rotate rapidly while rotating along the mixing drum. At the same time, the rotating scraper inside the mixing drum rotates synchronously with the revolution, so that the material moves from the inner wall of the mixing drum to the mixing paddle. The running direction of the mixer and the revolution can be the same direction or the reverse direction. Achieve different cutting purposes. The other two high-speed dispersion gear plates of the separate power unit also run along the stirring barrel with the revolution to disperse and emulsify. The high-speed dispersion gear plate is variable frequency speed regulation, and the speed can be set according to the production process. This kind of movement can make the material in a short time to achieve a completely uniform emulsion mixing effect, especially suitable for solid phase, solid liquid phase, liquid phase dispersion, mixing.
Product Description
Planetary power mixer is a non-dead point set dispersion, mixing as one of the efficient mixing equipment, suitable for polymer lithium ion battery liquid and liquid lithium ion battery liquid, electronic electrode slurry, adhesive, glue, silicone sealant, polyurethane sealant, anaerobic adhesive, ink, pigment, cosmetics, ointment, electronics, chemical, food, pharmaceutical, building materials and other industries of liquid and liquid, solid Mixing, reaction, dispersion, dissolution, homogenization, emulsification and other processes with liquid materials.
Application
New energy industry: Fuel cell, power battery, polymer lithium-ion battery (LIP), button battery, lithium iron phosphate battery, electric vehicle battery, lithium power battery, metal hydride nickel battery, mercury-free alkaline zinc-manganese battery, lithium (lithium ion) plastic battery, electrochemical energy storage supercapacitor, lithium-ion battery paste,etc.
Product Specification
| Type | Designvolume | Workingvolume | Tank inner size | Rotarypower | Revolution speed | Self-rotary speed | Disperser power | Disperserspeed | Lifing | Dimension |
| SXJ2 | 3 | 2 | 180*120 | 0.75 | 0-51 | 0-112 | 0.75 | 0-2980 | Electric | 800*580*1200 |
| SXJ5 | 7.4 | 5 | 250*150 | 1.1 | 0-51 | 0-112 | 1.1 | 0-2980 | 1200*700*1800 | |
| SX110 | 14 | 10 | 300*200 | 1.5 | 0-48 | 0-100 | 1.5 | 0-2980 | 1300*800*1800 | |
| SXJ15 | 24 | 15 | 350*210 | 2.2 | 0-43 | 0-99 | 2.2 | 0-2980 | 1500*800*1900 | |
| SXJ30 | 43 | 30 | 400*350 | 3 | 0-42 | 0-97 | 3 | 0-2980 | 1620*900*1910 | |
| SXJ50 | 68 | 48 | 500*350 | 4 | 0-39 | 0-85 | 4 | 0-2100 | Hydraulic | |
| SXJ60 | 90 | 60 | 550*380 | 5.5 | 0-37 | 0-75 | 5.5 | 0-2100 | 1800*1100*2450 | |
| SX1100 | 149 | 100 | 650*450 | 7.5 | 0-37 | 0-75 | 11 | 0-2100 | 2200*1300*2500 | |
| SX1200 | 268 | 200 | 750*600 | 15 | 0-30 | 0-61 | 22 | 0-1450 | 2400*1600*2800 | |
| SX1300 | 376 | 300 | 850*650 | 22 | 0-28 | 0-56 | 30 | 0-1450 | 3300*1300*3400 | |
| SXJ500 | 650 | 500 | 1000*830 | 37 | 0-24 | 0-48 | 45 | 0-1450 | 3700*1500*3500 | |
| SXJ1000 | 1327 | 1000 | 1300*1000 | 45 | 0-20 | 0-36 | 55 | 0-1450 | 4200*1800*3780 | |
| SXJ2000 | 2300 | 2000 | 1500*1300 | 75 | 0-13 | 0-35 | 90 | 0-1450 | 4500*2010*4000 |
Company Advantages
Whenever people are in need of High viscosity mixer, MAXWELL is the first one that comes to their mind. The product R&D team has injected a powerful impetus for the development of High viscosity mixer in Wuxi MAXWELL Automation Technology Co., Ltd. We attach importance to environmental protection. We will try hard to cut carbon footprint during production and reasonably handle and control production wastes.
Look forward to working with you to create a better future.
