Industrial Mixers and Agitators by MAXWELL-1

Product details of the industrial mixers and agitators

Product Description

MAXWELL industrial mixers and agitators features scientific structure and aesthetic appearance. It is well-designed by our dedicated designers who are equipped with innovative design ideas. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea The testing of the product achieves product superiority. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea The product is very popular in the industry especially for its unique features. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea

Product Introduce

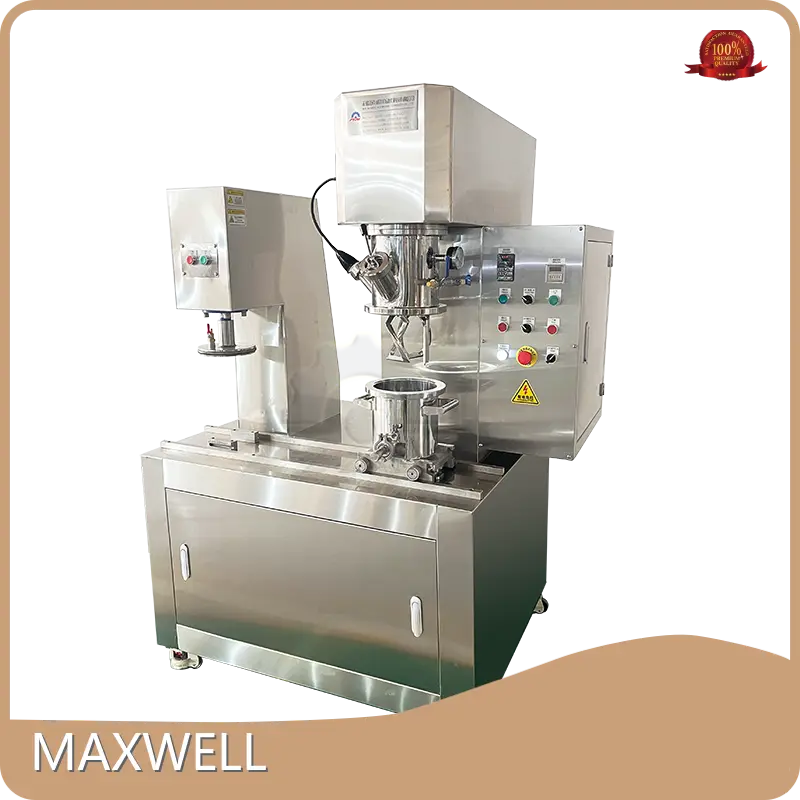

Lab Silica gel high viscosity Double Planetary Mixer is new and highly efficient mixing equipment designed for universities, research institute and factory lab. The machine consists of low speed agitator and a high speed disperser, has good mixing, reacting, dispersing, dissolving effect, especially suitable for the dispersing and mixing of solid-liquid, liquid-liquid phase; It’s quite fit for high viscosity product such as adhesives, silicone, Lithium battery slurry etc. due to its super strong output torque; The equipment has scraper which can scrape the bottom of the tank without dead corner or residue; also there are extrusion device and sliding rail to work together with this machine, so that realizing the integrated operation of mixing and discharging.

p1s 2l planetary mixing machine

p2s benchtop mixing and pressing machine

p3s Laboratory mixer with press

p4s Laboratory mixer with presser

p5s Laboratory mixer with extruder

Working Principle

Planetary power mixer is a kind of new high-efficiency mixing and stirring equipment with no dead spot. It features unique and novel stirrer mode, with two or three stirrers as well as one or two auto scrapers inside the vessel. While revolving around the axle of the vessel, the stirrers also rotate around its own axis at different speeds, to achieve complicated movement of strong shearing and kneading for materials inside the vessel. Besides, the scraper inside the equipment revolves around the axle of the vessel, scraping the materials adhering to the wall for mixing and achieving better effects.

The vessel adopts special sealing structure, capable of pressurized and vacuumized mixing, with excellent exhaust and bubble removal effects. Vessel jacket can be heating or cooling according customer's requirements. The equipment is sealed excellently. The vessel cover can be hydraulically lifted and lowered, and vessel can be moved freely for ease of operation. Furthermore, the stirrers and scraper can rise with the beam and fully detach from vessel body, for ease of cleaning.

Machine Features

1

1

Glue mixing machine, the materials are mixed rapidly under the action of strong shearing and kneading force. Various agitators (blade type, twist type, claw type, frame type etc) are in option based on materials with different viscosity and different specific gravity.

2

Adopt hydraulic cylinder as lifting actuators. Control the mixer up, stop and down through controlling the valve, simple operation with high stability.

3

There is scraper on the planetary frame rotating together with the planetary frame, it clings to the container and scrape the materials on the wall off continuously, and ensure without mixing dead corner and excellent mixing result.

4

Options for explosion-proof type, closed type, heating type, with PLC intelligent control type, etc.

5

Reliable airproof tank can mix in vacuum and decompression surroundings.

6

Tank with jacket for heating and cooling demand by input oil or water.

7

Changeable inner tank with precision process, easy cleaning.

8

The shaft motion on orbital revolution and axial rotation at the same time, which can make the material mixed evenly. Material options for SS304, SS316L or special Spraying materials.

Planetary Mixer Structure

● Double Twist Mixing Head

● Double-layer high speed dispersing head

● Scraper

● Emulsifying head ( Homogenizer head )

● The mixing head combination forms are tailored for different process.   Twist impeller blade, Dispersing disc, Homogenizer and Scraper are optional.

Product Details

In the application field of the multi-function mixer, we accumulated a wealth of experience. Our product combination include the combination of high speed and high-speed, the combination of high-speed and low-speed and the combination of low-speed and low-speed.   High-speed part is divided into high shear emulsification device, high-speed dispersion device, high-speed propulsion device, butterfly stirring device.   Low-speed part is divided into anchor stirring, paddle stirring, spiral stirring, helical ribbon stirring, rectangular stirring and so on.   Any combination has its unique mixing effect.   It also have vacuum and heating function and temperature inspect function.

Machine Details Description

1. Electric lifting tank: The electric lifting function of the tank can effectively stir the materials under closed conditions. It is easy to clean in the pot and easy to operate.

2. Spiral stirrer, scraper, dispersion plate: Various types can be configured according to customer requirements

3. Control system: There is a digital time relay, which can adjust the speed and working time of the mixer according to the process and characteristics of different products. emergency button. The electrical control cabinet integrates all the power on, off, control,voltage, current, and frequency conversion speed of the machine, and the mixing time setting is reasonably centralized,and the operation is clear at a glance

4. Extruder (Press machine): The press machine is the supporting equipment of the planetary mixer or the powerful disperser. Its function is to discharge or separate the high-viscosity rubber produced by the mixer.For laboratory planetary mixing machines,the press equipment can be integrated with mixing and pressing of the material.

压料部分 (2)

d2s spiral stirrer

d3s Control system

d4s Extruder

Our advantage

In the application field of the multi-function mixer, we accumulated a wealth of experience.

Our product combination include the combination of high speed and high-speed, the combination of high-speed and low-speed and the combination of low-speed and low-speed. High-speed part is divided into high shear emulsification device, high-speed dispersion device, high-speed propulsion device, butterfly stirring device. Low-speed part is divided into anchor stirring, paddle stirring, spiral stirring, helical ribbon stirring, rectangular stirring and so on. Any combination has its unique mixing effect. It also have vacuum and heating function and temperature inspect function

Industry experience

Having been in the industry for years, we know the market situation and industry requirements more clearly than most manufacturers.

Market area

We have accumulated extensive knowledge about the quality standards as well as market needs of thesecountries.

Team introduction

That is our highly-qualified employees. We have R&D experts, designers, QC professionals, and other highly qualified employees.

Product advantages

They outperform their competitors when it comes to durability and performance, deeply trusted by both domestic andforeign customers.

Application

Energy

All kinds of battery paste, paste material (lithium battery, nickel chromium battery, nickel metal hydride batteries,fuel cells, power battery, etc.)

Electronic Appliances Materials

Solder paste, ceramic slurry, magnetic material, silica gel ink, electronic adhesive, PVC plastic, electronic potting glue, hot melt adhesive, all kinds of precious metal powder, slurry

Chemicals

A variety of sealant, adhesive, silicone sealant, polysulfide sealant, structure of insulating glass sealant, waterproof sealant, sealant, anaerobic adhesive, stone glue, plastic mould, etc.), synthetic resin, rubber, printing ink, putty, abrasives (cream), wax products, synthetic rubber, synthetic resin, all kinds of powder materials, ceramic pigment

Pharmaceuticals

All kinds of soft ointment, polymer gel (medical post, colds, pediatric antifebrile fast post), ice stick, eye,teeth

Cosmetics

Cream, lipstick, lotion, gel, facial mask, mascara, foundation, nail polish, toothpaste, soap

Food

All kinds of paste, paste mixing, seasoning, jam, chocolate syrup

Application scenario

application 1

Company Feature

• MAXWELL's location enjoys advantageous geographic condition with open and unimpeded traffic access. This creates convenience for us to deliver various cosmetic makingm machine,mayonnaise making machine,vacuum emulsifying mixer,double planetary mixer,filling machine,cosmetics filling machine,labelling machine in time.
• Our company has a group of teams experienced for research and development and production management. They can independently complete all aspects from production, quality control to export. And our products can meet the requirements of customers and the market for product quality.
• MAXWELL's cosmetic makingm machine,mayonnaise making machine,vacuum emulsifying mixer,double planetary mixer,filling machine,cosmetics filling machine,labelling machine enjoy a broad market, which are currently sold well in various regions at home and abroad.
• Established in MAXWELL has a development history of years.
For the product information, please enter the contact information and follow the account of MAXWELL.
