Product details of the silicone sealant filling machine

Product Information

MAXWELL silicone sealant filling machine is developed as per the specifications laid by customers. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea Since we have been concentrating on high quality product, this product has been ensured in terms of the quality. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea With the continuous improvement of the product, it would be certainly getting a further application. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea

Product Introduce

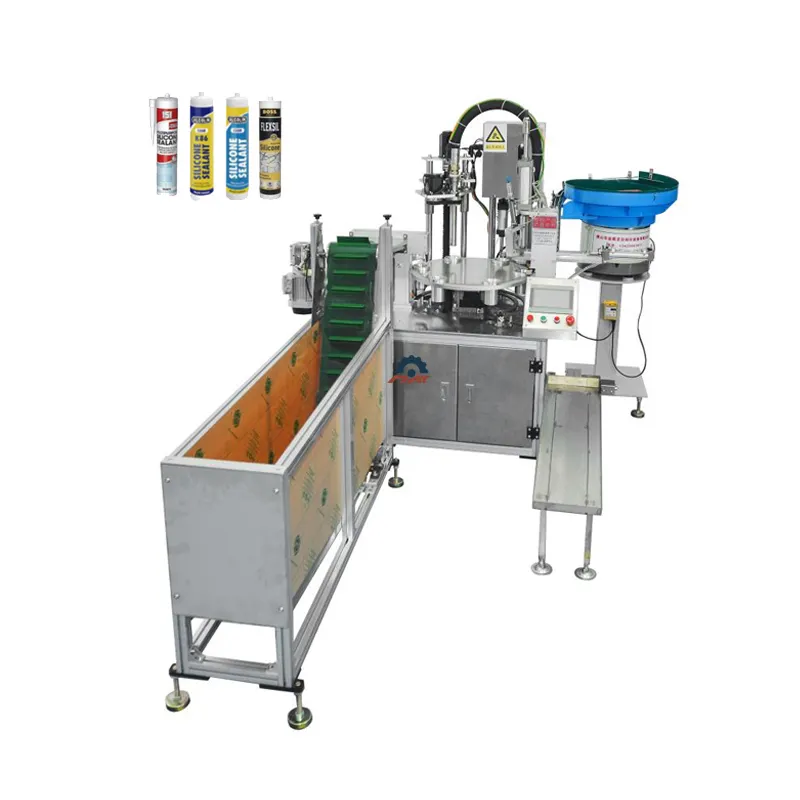

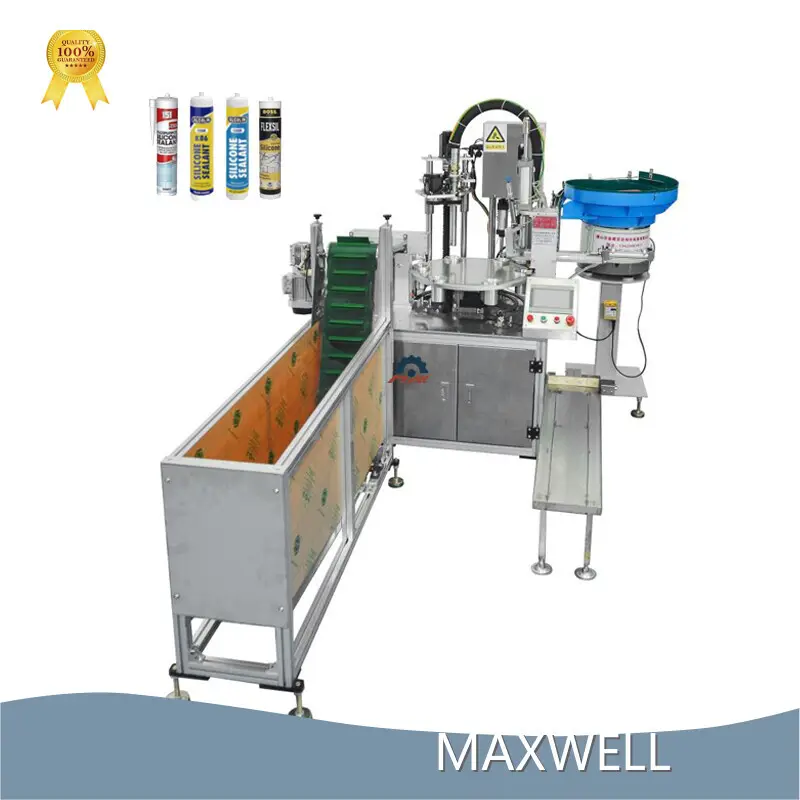

CAR-V-300 Automatic vertical silicone sealant cartridge filling and capping machine is suitable for viscose materials to plastic bottles , equipment automatically feeding bottles and caps, using quantitative cylinder servo motor control, automatic capping, set up spray code connection device (optional), other functions.  With accurate measurement, high degree of automation, reduce personnel, reduce labor intensity, etc.  After repeated design and improvement, has reached the design of humane, easy to operate, good stability and other advantages, more than 20T hydraulic extruder can be used with.

双缸 (2) 独家拍

独家拍

单缸 (2) 独家拍

d6s

Video Display

Product Features

1

1

Automatic control, manual addition of bottles and bottom caps, automatic bottle supply/automatic quantitative filling, automatic capping/automatic capping/automatic coding (not including coding machine)/automatic blanking.

2

The whole machine adopts PLC controller and touch screen, strict precision control and processing technology of each transmission part, the equipment has high stability and fast response.

3

Adopt positive displacement metering cylinder, servo motor controls quantification. The filling measurement accuracy is high (error 0.5%), touch the screen to adjust the measurement parameters.

4

Material filtering function, standard filtering device.

Product structure diagram

structure

Product Description

1. Filling & Capping system: Adopt volumetric measuring cylinder, servo motor control quantitative.  Filling measurement accuracy is high (error 0.5%).  No air comes in during the whole process.

2. Cartridge loading device: Adopt cartridge loader automatic loading the tube on machine.  Silicone stations filling part connect with drum press and equip cartridge pushing and pulling function.

3. Cap loading device: Cap elevator and tunnel to auto load cap. Adopt vibrating bowl automatic loading cap. Air cylinder pushes cap on the tube bottom and then turn tube capping it.

4. Servo control system: Servo motor controlled filling, the whole work process is running stable.

d4s

d3s

d6s (2)

d5s

Product parameters

Equipment name	Press Material Machine
Type	YJ200-1/YJ200-2
Power Supply	AC 3~380V+Nwire /50HZ
Extrusion force	45T/60T
suitable bucket	200L(Dia570MM*Heigh880MM) standard bucket
Outlet size	DN65
Hydraulic station oil tank	120L
motor	4KW/Hydraulic motor
Hydraulic station oil size	L650MM*W550MM*H800MM

Applications

Chemical Products

This machine is used for filling cartridge tube. It can fill materials such as paste, adhesive, AB glue, epoxy glue, RTV silicone,Silicone adhesive/weatherproof structural adhesive/electronic adhesive/nail-free adhesive/AB adhesive/seam sealant/epoxy adhesive/polyurethane adhesive/glass adhesive presser, etc. It equipped with a hydraulic press to handle the high viscosity material. Easy to operate and fast production speed.
