Silicone Sealant - - MAXWELL

Product details of the silicone sealant

Product Information

MAXWELL silicone sealant is designed under the guidance of highly skilled designers. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea Enhanced product quality is guaranteed with systematic quality improvement activities. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea This product is superior in appearance and versatility, which is popular in the field. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea

Product Introduce

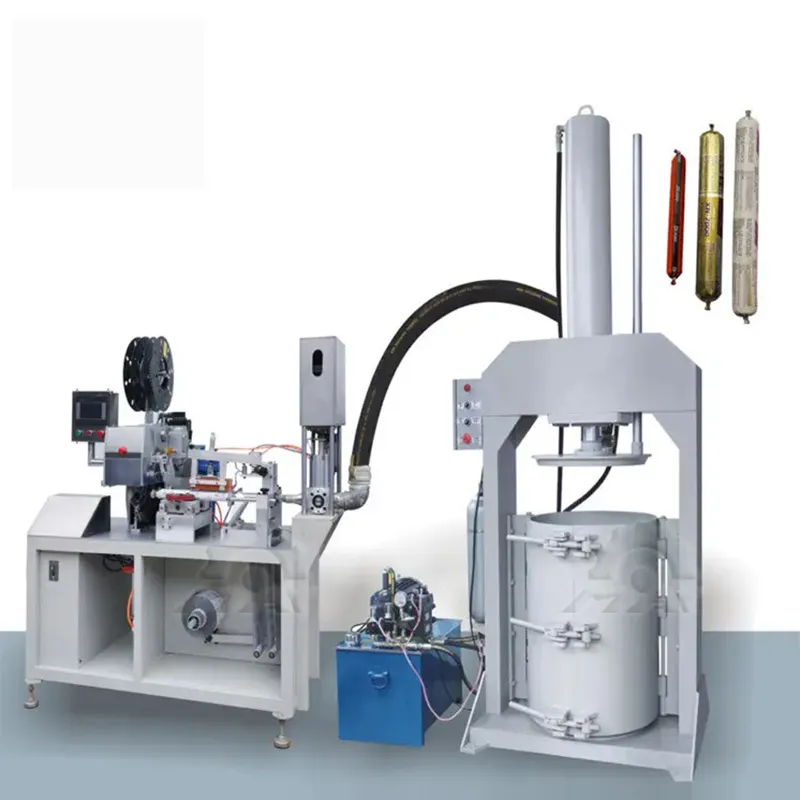

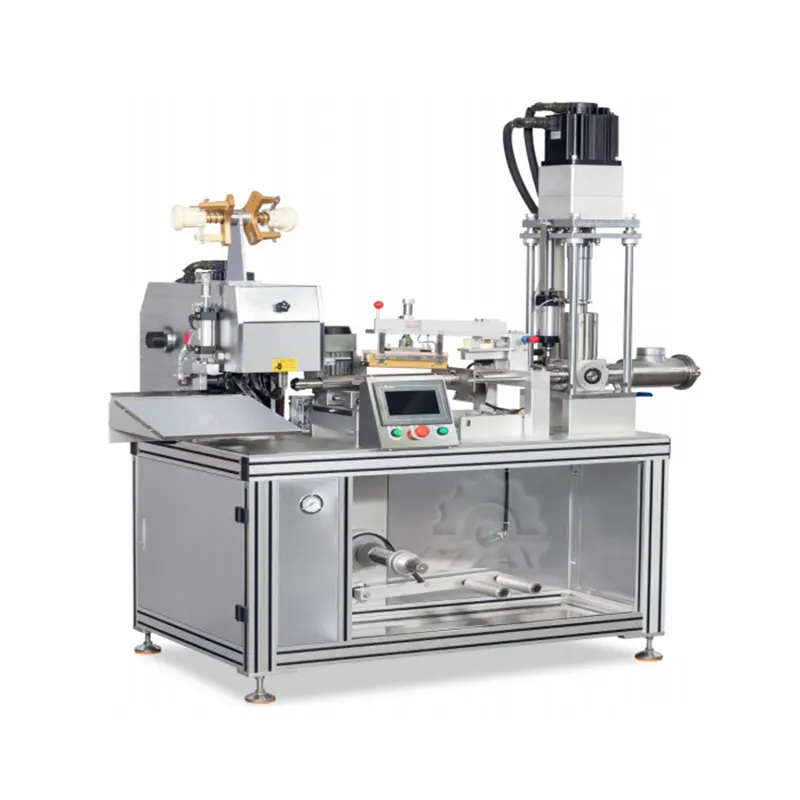

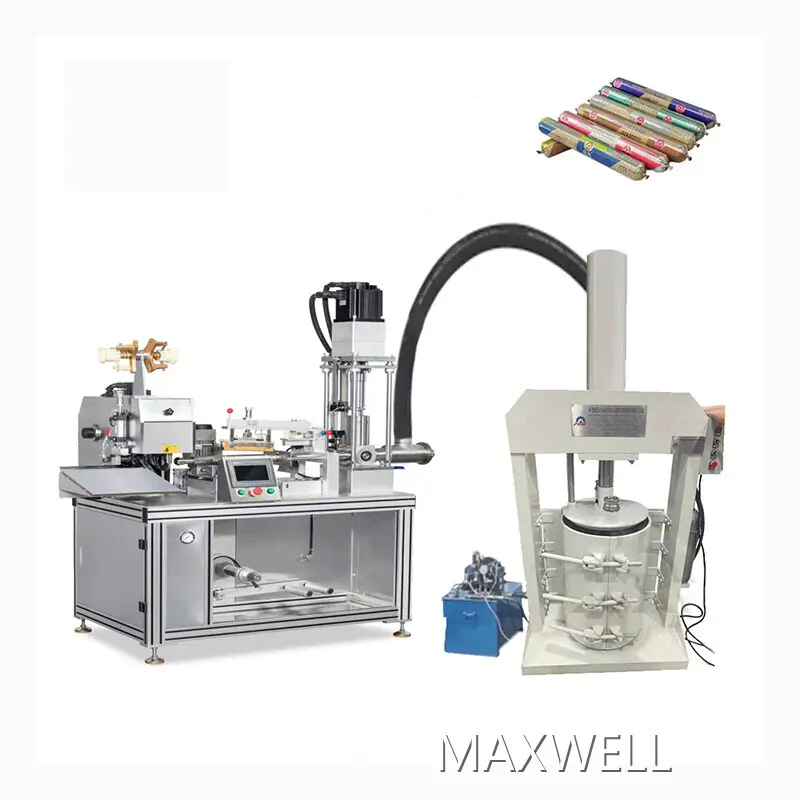

This full automatic sausage filling machine is widely used for filling silicone sealant, polyurethane sealant, MS sealant, adhesive and other paste materials.   This filling machine is horizontal structure has features of moving easily, adopting advanced pneumatic and photoelectric monitoring as well as PLC intelligent control. This filling machine includes four closely linked processes of flexible package tube making, PLC precision controlled, double end sealing forming and automatic cutting.

This filling machine has advantages of accurate filling weight, consistent batches, replacing previous segmented processes of tube making-filling-clipping, avoiding problems of cooperation between different working procedures. This filling machine keep product quality stable, improve production efficiency, with excellent filling and sealing performance, also save cost during production for sealant or adhesive manufacturers.

微信图片_20240122101524

微信图片_20230323150741

微信图片 (2)

微信图片 (3)

微信图片

微信图片 (4)

微信图片 (7)

微信图片 (6)

Video Display

Function

1

1

Suitable for silicone sealant, PU sealant, MS sealant and adhesive etc

2

Suitable for sausage film with width 152-164mm, thinkness 0.05-0.07mm

3

Suitable for 15-8 great wall clip

4

Filling speed is about 25-35pcs/minute

5

Filling capacity can be set between 300ml to 600ml

6

Free choices between manual operation and automatic operation

7

Automatic alarm display and machine stop at error

Machine Structure Diagram

Automatic control, plaxtic/aluminum film forming/heat sealing/coding/quantitative filling/buckle ligation/cutting/unloading can be completed by 1 machine, and can be operated by 1 worker.

structure diagram

structure diagram

Machine Details Description

1. Filling Method: Using servo motor to control the quantitative cylinder system.    High filling precision, filling volume can be adjusted at any time on the screen.

2. Outlet method: The hydraulic discharge method ensures the discharge efficiency and stability of high-viscosity materials, and the discharge is

fast and easy to maintain.

3. Sealing Method: Adopt servo motor to control mechanical snap forming system, with good stability and high speed

4. Control System: The whole machine adopts PLC controller and touch screen, strict precision control and processing technology of various transmission parts, high equipment stability and fast response.

photobank

photobank (1)

photobank (3)

photobank (2)

Product parameters

Equipment name	Press Material Machine
Type	YJ200-1/YJ200-2
Power Supply	AC 3~380V+Nwire /50HZ
Extrusion force	45T/60T
suitable bucket	200L(Dia570MM*Heigh880MM) standard bucket
Outlet size	DN65
Hydraulic station oil tank	120L
motor	4KW/Hydraulic motor
Hydraulic station oil size	L650MM*W550MM*H800MM

Applications

Chemical Products

This machine is used for filling cartridge tube. It can fill materials such as paste, adhesive, AB glue, epoxy glue, RTV silicone,Silicone adhesive/weatherproof structural adhesive/electronic adhesive/nail-free adhesive/AB adhesive/seam sealant/epoxy adhesive/polyurethane adhesive/glass adhesive presser, etc. It equipped with a hydraulic press to handle the high viscosity material. Easy to operate and fast production speed.

Company Advantage

• MAXWELL is located at the intersection of different highways. The great geographic location, traffic convenience, and easy distribution make it an ideal place for the sustainable development of the enterprise.
• With the best products and professional sales and technical team, we provide customers with the best products, good technical support, and sound after-sales service.
• Our company always keeps in mind the service principle of 'the needs of customers can not be ignored'. We develop sincere exchanges and communication with customers, and offer them comprehensive services in accordance with their actual demands.
• We have established a mature network marketing system. Through network platforms, our products are sold to major provinces, cities and autonomous regions across the country. Some products are also exported to Europe, America, Southeast Asia and other countries and regions.
If you need to buy our products, welcome to contact us!
