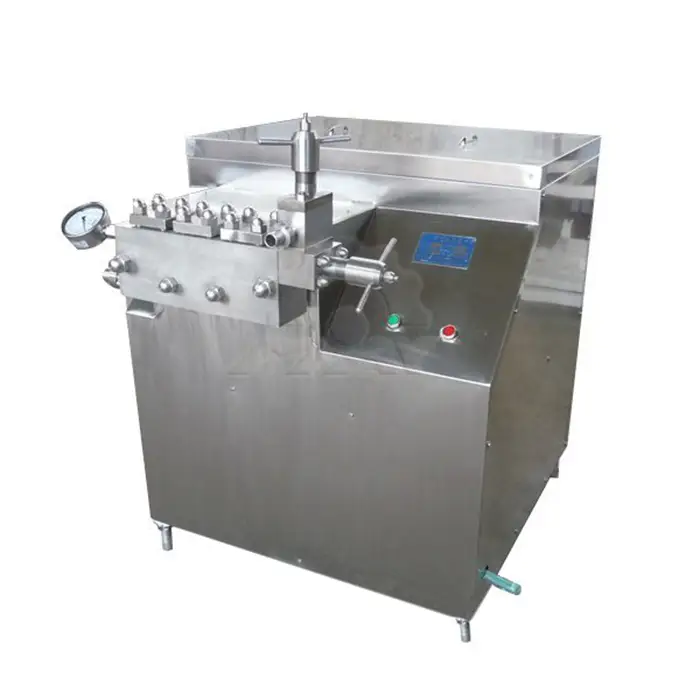

High Pressure Homogenizer Machine For Milk Yoghurt Ice Cream Butter Dairy
Place of Origin: Wuxi,Jiangshu,China
Minimum order quantity: 1
Color: Sliver
Material: SUS304,SUS316
Packing: Wooden Case
Delivery time: 20-30 days
Product Introduce
Video Display
Product Parameter
|
Model |
Power(KW) |
Flow(L/H) |
Rated pressure (Mpa) |
Maximum pressure (MPa) |
|
MX-25-1.5 |
1.5 |
80 |
20 |
25 |
|
MX-25-2.2 |
2.2 |
150 |
20 |
25 |
|
MX-25-3 |
3 |
200 |
20 |
25 |
|
MX-25-5.5 |
5.5 |
500 |
20 |
25 |
|
MX-25-7.5 |
7.5 |
1000 |
20 |
25 |
|
MX-25-11 |
11 |
1500 |
20 |
25 |
|
MX-25-15/18.5 |
15/18.5 |
2000 |
20 |
25 |
|
MX-25-30 |
30 |
4000 |
20 |
25 |
|
MX-25-75 |
75 |
10000 |
20 |
25 |
|
MX-40-7.5 |
7.5 |
500 |
32 |
40 |
|
MX-40-15/18.5 |
15/18.5 |
1000 |
32 |
40 |
|
MX-40-30 |
30 |
2000 |
32 |
40 |
|
MX-40-55 |
55 |
4000 |
32 |
40 |
|
MX-60-22 |
22 |
1000 |
48 |
60 |
|
MX-60-37/45 |
37/45 |
2000 |
48 |
60 |
|
MX-60-55 |
55 |
3000 |
48 |
60 |
|
MX-60-75 |
75 |
4000 |
48 |
60 |
|
MX-60-110 |
110 |
6000 |
48 |
60 |
Features
Product structure diagram
Machine Details
1. Hydraulic end:
(1) Main pump body: three-way type, the gland adopts radial self-aligning seal, which is durable and free of leakage.
(2) Plunger: special alloy plunger, durable, safe and easy to disassemble. Square plunger seal assembly, code x4310. (the pump body does not need to be unloaded to replace the seal) Check valve: durable and reliable, ensuring flow ≥ rated flow value.
(3) Homogenization valve: three piece flat valve (high pressure valve core, seat and collision ring) is installed at the first stage of high pressure, and two piece flat valve is installed at the second stage of low pressure.
2. Power end:
(1) Drive: two-stage variable speed; The primary belt pulley and the secondary curved arm gear are symmetrically driven; Special alloy bearing bush, bilateral rolling bearing, horizontal stability, low noise, and the average mechanical efficiency is increased by about 10%.
(2) Lubrication: splash automatic lubrication and forced lubrication by oil pump, safe and reliable.
Application
1, food and beverage industry: milk, yogurt, soy milk, peanut milk, milk powder, ice cream, natural drinks, juice drinks, food additives, all kinds of spices, etc.
2, light industry, chemical industry: all kinds of emulsifier, flavor spices, cosmetics, paint, dye, emulsion, thickening agents, detergent, emulsified oil, etc.
3, the pharmaceutical industry: antibiotics, Chinese traditional medicine preparation, liquid slurry preparation, nutrition, health care, etc.
4, bioengineering technology: cell disruption, enzyme engineering, the extraction of effective ingredients, etc.
