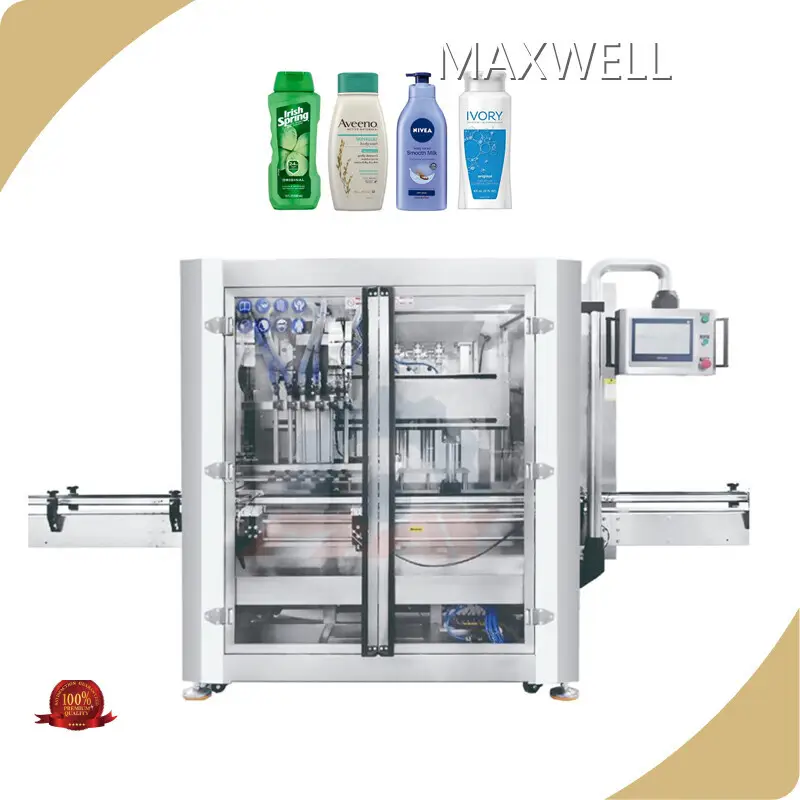

Auto Bottle Filling Machine - - MAXWELL
Product details of the auto bottle filling machine
Product Information
Wuxi MAXWELL Automation Technology Co., Ltd can customize the colors, shapes and sizes according to the needs of clients. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea Every detail of the product has been carefully inspected by profession QC staff. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea Our products add value to customers' business at home and abroad. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea
Product Introduce
Video Display
Machine Parameters
|
Model |
GSF-6T |
|
Filling range |
100-1000ml (Customizable) |
|
Filling speed |
60-80 bottles/min (Base on 500-1000ml) (Also depend on filling material) |
|
Measurement accuracy |
±1% |
|
Power voltage |
6.6kw |
|
Air pressure |
0.6-0.7mpa |
|
Dimention(L*W*H) |
3000*1500*2300mm |
|
Net weight |
950kg |
Features
● Efficient Filling:
--Ours : Tracking high speed filing machine uses sensors to accurately find bottles follow-up filling, the production process without pause.
--Traditional multi-head automatic filling machine is expensive. The production process of bottles to stop filling speed is slow.
● Smart Dials:
--Ours : Tracking high-speed filling machine just a few minutes to complete the adjustment into the next wave of production for different shape, different height and different capacity bottles.
Thoroughly solve the problem of time-consuming and laborious due to a wide variety of products, a small number of items, frequent adjustment.
--Traditional automatic filling machine needs to be debuggedrepeatedly before it can be put into production again.
Machine Details
1. Smart Touch Screen: Colorful operation interface, multiple parameters, at a glance, simple adjustment.
2. Silky Switching Different Bottles: Parameter configuration can be saved with one key.
3. Tracking Filling Structure: Servo lifting motor control, electric lifting and moving horizontally to realize all-round tracking filling.
4. High Quality Filling Nozzels: Installed with anti-drip device to ensure no leakage.
5. Photo Eye Sensor: Automatic filling with bottles, no bottles without filling; automatic bottle stopping, automatic bottle blocking.
6. Piston Cylinder Body Mechanism:
Made of stainless steel 304, food grade material;
High measuring accuracy;
The cylinder body off the cylinder structure is easy to clean.
7. Circuit Structure: Well-known electrical components to ensure the stability and durability of the equipment.
Application
APPLICABLE TO FOOD/DAILY CHEMICALS/LIQUIDS/PESTICIDES/COSMETICS/CLEANING PRODUCTS
AND OTHER PRODUCT TYPES
