Double Planetary Mixer Price - - MAXWELL

Product details of the double planetary mixer price

Quick Detail

With advanced and sophisticated production technique, MAXWELL double planetary mixer price is perfect in every detail. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea Our quality experts test this product for high performance. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea MAXWELL's double planetary mixer price is widely used in the industry and is widely recognized by customers. The product is economical and has been widely used in all walks of life. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea

Product Information

With the pursuit of perfection, MAXWELL exerts ourselves for well-organized production and high-quality double planetary mixer price.

Product Introduce

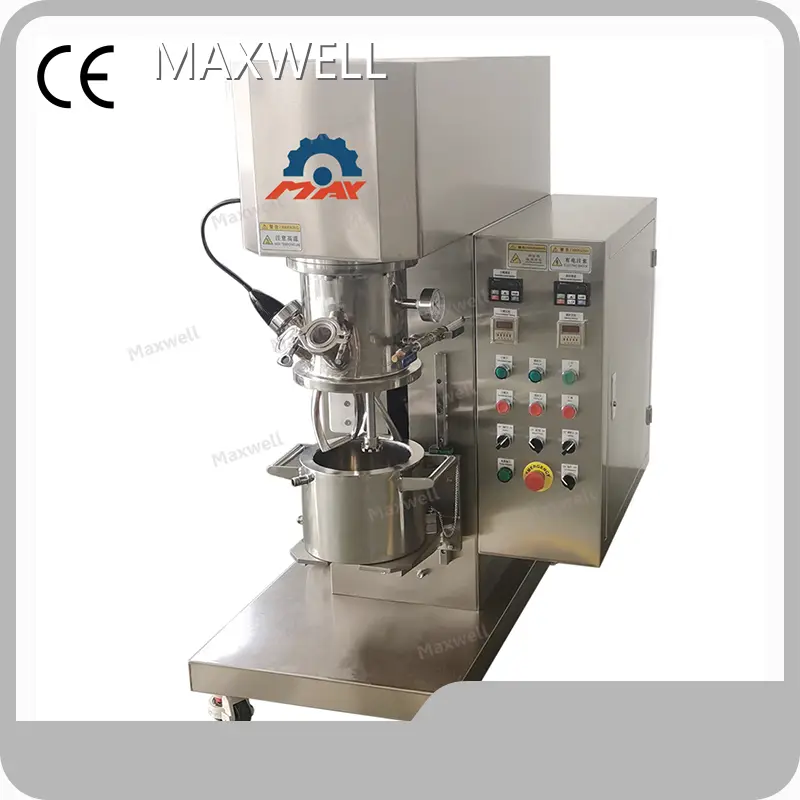

The double planetary mixer adopted advanced technology, which is widely used in dispersing mixing middle or high viscosity liquid-liquid/solid-solid/liquid-solid material, such as adhesives, sealant, silicone rubber, glass glue, solder paste, quartz sand,battery paste, electronic slurry, lithium battery slurry, polyurethane, coating, pigment, dyestuff, synthetic resin rubber,ointment and etc for for electronics, chemical,construction and agricultural industries.  which the viscosity is app. from 5000cp to 1000000cp.

2s 15L vacuum planetary mixer.jpg

3s 15L vacuum planetary mixer.jpg

4s 15L vacuum planetary mixer.jpg

Working Principle

Planetary power mixer is a kind of new high-efficiency mixing and stirring equipment with no dead spot.  It features unique and novel stirrer mode, with two or three stirrers as well as one or two auto scrapers inside the vessel. While revolving around the axle of the vessel, the stirrers also rotate around its own axis at different speeds, to achieve complicated movement of strong shearing and kneading for materials inside the vessel.  Besides, the scraper inside the equipment revolves around the axle of the vessel, scraping the materials adhering to the wall for mixing and achieving better effects.

The vessel adopts special sealing structure, capable of pressurized and vacuumized mixing, with excellent exhaust and bubble removal effects.  Vessel jacket can be heating or cooling according customer's requirements.  The equipment is sealed excellently.  The vessel cover can be hydraulically lifted and lowered, and vessel can be moved freely for ease of operation.  Furthermore, the stirrers and scraper can rise with the beam and fully detach from vessel body, for ease of cleaning.

Product Features

1

1

Glue mixing machine, the materials are mixed rapidly under the action of strong shearing and kneading force. Various agitators (blade type, twist type, claw type, frame type etc) are in option based on materials with different viscosity and different specific gravity.

2

Adopt hydraulic cylinder as lifting actuators. Control the mixer up, stop and down through controlling the valve, simple operation with high stability.

3

There is scraper on the planetary frame rotating together with the planetary frame, it clings to the container and scrape the materials on the wall off continuously, and ensure without mixing dead corner and excellent mixing result.

4

Options for explosion-proof type, closed type, heating type, with PLC intelligent control type, etc.

5

Reliable airproof tank can mix in vacuum and decompression surroundings.

6

Tank with jacket for heating and cooling demand by input oil or water.

7

Changeable inner tank with precision process, easy cleaning.

8

The shaft motion on orbital revolution and axial rotation at the same time, which can make the material mixed evenly. Material options for SS304, SS316L or special Spraying materials.

Planetary Mixer Structure

● Double Twist Mixing Head

● Double-layer high speed dispersing head

● Scraper

● Emulsifying head ( Homogenizer head )

● The mixing head combination forms are tailored for different process.   Twist impeller blade, Dispersing disc, Homogenizer and Scraper are optional.

Product Description

1. Lifting system: The electric lifting function of the lid can effectively stir the materials under closed conditions. It is easy to clean in the pot and easy to operate.

2. Spiral stirrer, scraper, dispersion plate: Various types can be configured according to customer requirements

3. Electric or hydraulic lifting tank

4. Control system: There is a digital time relay, which can adjust the speed and working time of the mixer according to the process and characteristics of different products. emergency button. The electrical control cabinet integrates all the power on, off, control,voltage, current, and frequency conversion speed of the machine, and the mixing time setting is reasonably centralized,and the operation is clear at a glance.

5. Hydraulic press machine: The hydraulic press is the supporting equipment of the planetary mixer or the powerful disperser. Its function is to discharge or separate the high-viscosity rubber produced by the mixer. For Laboratory Planetary Mixing Machines,The press equipment can be separate or integrated with mixing and pressing of the material.

d5s mixing and press

d5s Hydraulic press machine

d1s Lifting system

d2s Spiral stirrer, scraper, dispersion plate

搅拌浆1

d3s Electric or hydraulic lifting tank

d4s Control system

d4s PLC panel of machine

Application

Energy

All kinds of battery paste, paste material (lithium battery, nickel chromium battery, nickel metal hydride batteries,fuel cells, power battery, etc.)

Electronic Appliances Materials

Solder paste, ceramic slurry, magnetic material, silica gel ink, electronic adhesive, PVC plastic, electronic potting glue, hot melt adhesive, all kinds of precious metal powder, slurry

Chemicals

A variety of sealant, adhesive, silicone sealant, polysulfide sealant, structure of insulating glass sealant, waterproof sealant, sealant, anaerobic adhesive, stone glue, plastic mould, etc.), synthetic resin, rubber, printing ink, putty, abrasives (cream), wax products, synthetic rubber, synthetic resin, all kinds of powder materials, ceramic pigment

Pharmaceuticals

All kinds of soft ointment, polymer gel (medical post, colds, pediatric antifebrile fast post), ice stick, eye,teeth

Cosmetics

Cream, lipstick, lotion, gel, facial mask, mascara, foundation, nail polish, toothpaste, soap

Food

All kinds of paste, paste mixing, seasoning, jam, chocolate syrup

Application scenario

application 1

Our advantage

In the application field of the multi-function mixer, we accumulated a wealth of experience.

Our product combination include the combination of high speed and high-speed, the combination of high-speed and low-speed and the combination of low-speed and low-speed. High-speed part is divided into high shear emulsification device, high-speed dispersion device, high-speed propulsion device, butterfly stirring device. Low-speed part is divided into anchor stirring, paddle stirring, spiral stirring, helical ribbon stirring, rectangular stirring and so on. Any combination has its unique mixing effect. It also have vacuum and heating function and temperature inspect function

Industry experience

Having been in the industry for years, we know the market situation and industry requirements more clearly than most manufacturers.

Market area

We have accumulated extensive knowledge about the quality standards as well as market needs of thesecountries.

Team introduction

That is our highly-qualified employees. We have R&D experts, designers, QC professionals, and other highly qualified employees.

Product advantages

They outperform their competitors when it comes to durability and performance, deeply trusted by both domestic andforeign customers.

Application scenario

application 1

Company Information

Wuxi MAXWELL Automation Technology Co., Ltd is located in wu xi and mainly deals with the production and sales of cosmetic makingm machine,mayonnaise making machine,vacuum emulsifying mixer,double planetary mixer,filling machine,glue filling machine,silicone sealant filling machine,vacuum planetary mixer,industrial mixer,homogenizer,lab planetary mixer,vacuum homogenizer mixer,cosmetic cream mixer machine. Guided by the principle of 'credit first, customer supreme, survival by quality, development by reputation', we are moving towards a higher goal with great courage. Based on the concept of 'people-oriented', our company recruits and trains all kinds of management and technical talents. Now we have formed a sound management system with multiple departments in our company, to provide strength for our development and growth. With rich manufacturing experience and strong production capability, MAXWELL is able to provide professional solutions according to customers' actual needs.
We have many years of experience in production and sales. And if you are interested in our products, feel free to contact us.
