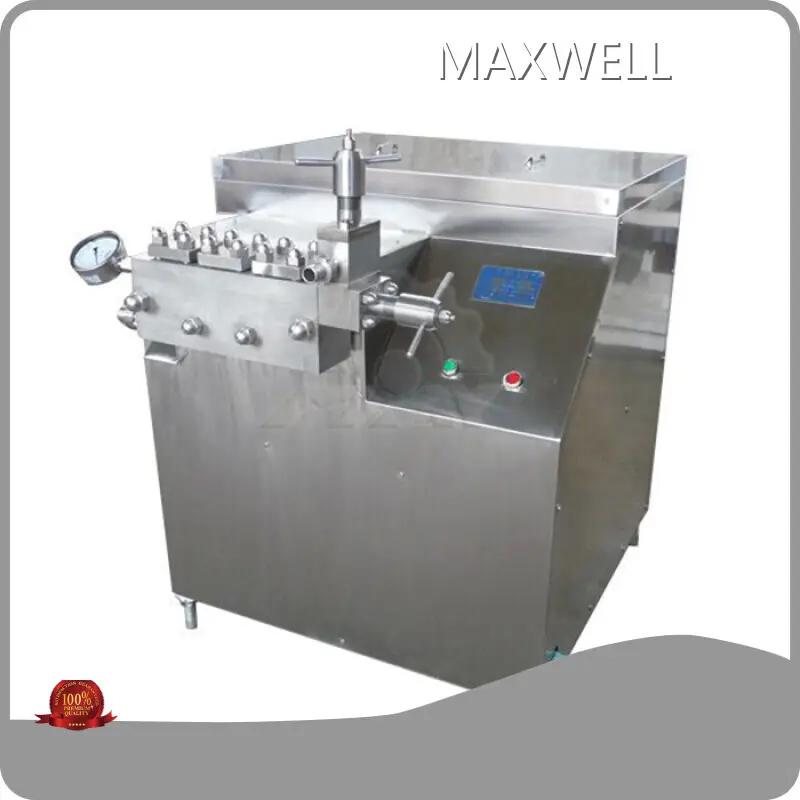

High Speed Homogenizer by MAXWELL-2
Company Advantages
· MAXWELL high speed homogenizer is manufactured by using the high quality raw materials. These high performance and well-selected raw materials are bound to highlight the value of this product. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea
· The quality of the product is guaranteed as quality is always crucial to the long-term development of our company. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea
· The product has a great reputation in the domestic market and is increasingly accepted by global customers. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea
Product Introduce
Video Display
Product Parameter
|
Model |
Power(KW) |
Flow(L/H) |
Rated pressure (Mpa) |
Maximum pressure (MPa) |
|
MX-25-1.5 |
1.5 |
80 |
20 |
25 |
|
MX-25-2.2 |
2.2 |
150 |
20 |
25 |
|
MX-25-3 |
3 |
200 |
20 |
25 |
|
MX-25-5.5 |
5.5 |
500 |
20 |
25 |
|
MX-25-7.5 |
7.5 |
1000 |
20 |
25 |
|
MX-25-11 |
11 |
1500 |
20 |
25 |
|
MX-25-15/18.5 |
15/18.5 |
2000 |
20 |
25 |
|
MX-25-30 |
30 |
4000 |
20 |
25 |
|
MX-25-75 |
75 |
10000 |
20 |
25 |
|
MX-40-7.5 |
7.5 |
500 |
32 |
40 |
|
MX-40-15/18.5 |
15/18.5 |
1000 |
32 |
40 |
|
MX-40-30 |
30 |
2000 |
32 |
40 |
|
MX-40-55 |
55 |
4000 |
32 |
40 |
|
MX-60-22 |
22 |
1000 |
48 |
60 |
|
MX-60-37/45 |
37/45 |
2000 |
48 |
60 |
|
MX-60-55 |
55 |
3000 |
48 |
60 |
|
MX-60-75 |
75 |
4000 |
48 |
60 |
|
MX-60-110 |
110 |
6000 |
48 |
60 |
Features
Product structure diagram
Machine Details
1. Hydraulic end:
(1) Main pump body: three-way type, the gland adopts radial self-aligning seal, which is durable and free of leakage.
(2) Plunger: special alloy plunger, durable, safe and easy to disassemble. Square plunger seal assembly, code x4310. (the pump body does not need to be unloaded to replace the seal) Check valve: durable and reliable, ensuring flow ≥ rated flow value.
(3) Homogenization valve: three piece flat valve (high pressure valve core, seat and collision ring) is installed at the first stage of high pressure, and two piece flat valve is installed at the second stage of low pressure.
2. Power end:
(1) Drive: two-stage variable speed; The primary belt pulley and the secondary curved arm gear are symmetrically driven; Special alloy bearing bush, bilateral rolling bearing, horizontal stability, low noise, and the average mechanical efficiency is increased by about 10%.
(2) Lubrication: splash automatic lubrication and forced lubrication by oil pump, safe and reliable.
Application
1, food and beverage industry: milk, yogurt, soy milk, peanut milk, milk powder, ice cream, natural drinks, juice drinks, food additives, all kinds of spices, etc.
2, light industry, chemical industry: all kinds of emulsifier, flavor spices, cosmetics, paint, dye, emulsion, thickening agents, detergent, emulsified oil, etc.
3, the pharmaceutical industry: antibiotics, Chinese traditional medicine preparation, liquid slurry preparation, nutrition, health care, etc.
4, bioengineering technology: cell disruption, enzyme engineering, the extraction of effective ingredients, etc.
Company Features
· Being one of a leading enterprise specialized in R&D, manufacturing, and marketing of high speed homogenizer, Wuxi MAXWELL Automation Technology Co., Ltd is winning more and more market shares overseas.
· We have import and export rights which are jointly authorized by the municipal commercial affairs bureau, municipal customhouse, and Inspection and Quarantine Bureau. The products we export are all in line with the laws. Our company has the license of import and export. This is the first step that we conduct foreign trades. This license also enables us to partake in different international exhibitions, which also provides sourcing opportunities for foreign purchasers.
· Always putting customers first and continuing to meet customer needs with high speed homogenizer can help MAXWELL gain reputation. Ask!
Product Details
MAXWELL pays great attention to details. And the details of high speed homogenizer are as follows.
Enterprise Advantages
has a team formed by professional and technical personnel and high-quality management backbone.
Our company strictly follows the actual needs of customers and provides them with matching and high-level professional services.
Our company insists on taking innovation as the driving force, pursuing development with quality, taking customer satisfaction as the highest standard. We are committed to becoming a leader in the international industry.
With years of accumulated experience, MAXWELL has created a complete industrial chain business model.
MAXWELL has established sales outlets throughout the country. The products are also exported to overseas regions.
