Product details of the industrial mixer machine

Product Information

Innovative technology and superior materials are adopted in MAXWELL industrial mixer machine manufacturing. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea Its quality is secured before the loading. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea Perfect after-sales service is provided by Wuxi MAXWELL Automation Technology Co., Ltd to maximize customer satisfaction. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea

Product Introduce

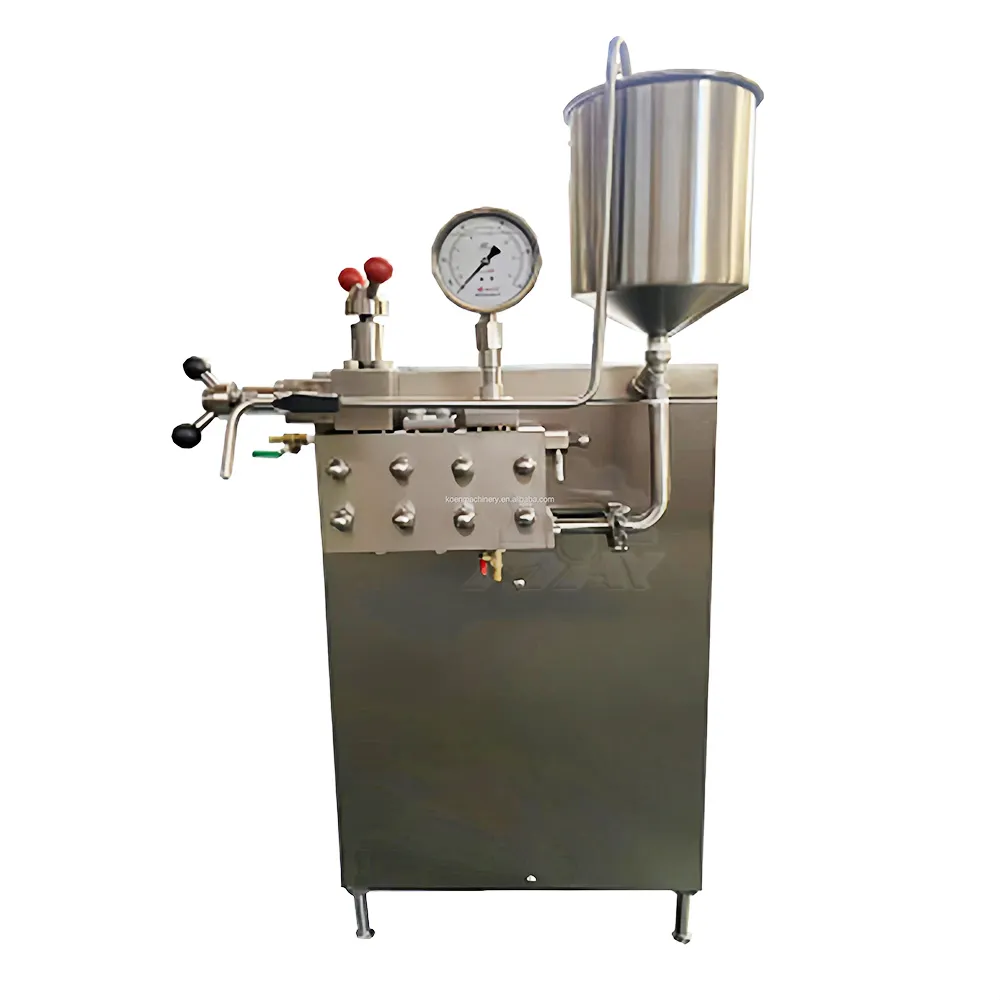

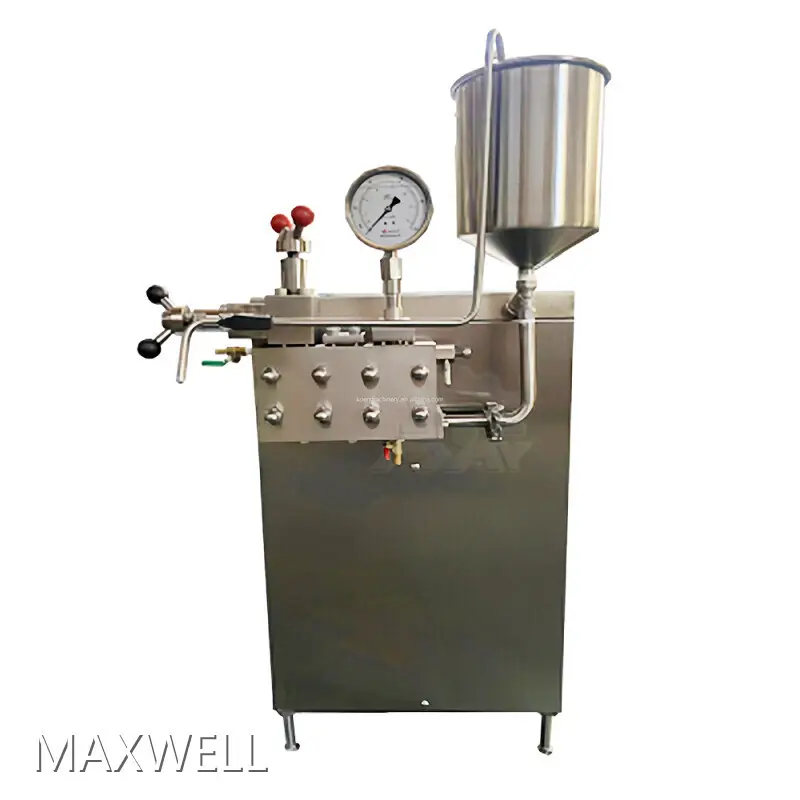

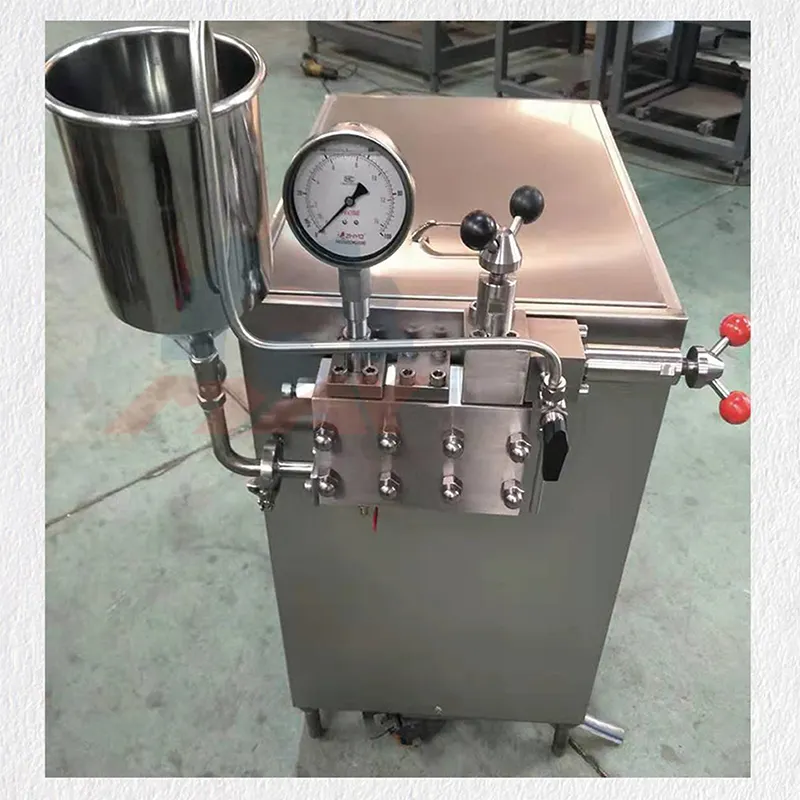

The high-pressure homogenizer,  also known as "high-pressure fluid nano homogenizer", can make the material in suspension state flow through the container with special internal structure  (high-pressure homogenization chamber)  at high speed under the action of ultra-high pressure (up to 60000psi), so as to make the material undergo a series of changes in physical, chemical and structural quality, and finally achieve the effect of homogenization.

8s

9s

7s (3)

4s (7)

6s (5)

Product Parameter

Model	Power(KW)	Flow(L/H)	Rated pressure (Mpa)	Maximum pressure (MPa)
MX-20-1.5	1.5	100	16	20
MX-20-2.2	2.2	180	16	20
MX-20-3	3	250	16	20
MX-25-1.5	1.5	80	20	25
MX-25-2	2	150	20	25
MX-25-3	3	200	20	25
MX-40-1.5	1.5	50	32	40
MX-40-2	2	80	32	40
MX-40-3	3	150	32	40
MX-80-1.5	1.5	30	64	80
MX-80-2	2	50	64	80
MX-80-3	3	60	64	80
MX-150-3	3	30	120	150

Features

1

The whole machine is designed in a stainless steel casing with a smooth surface.

2

The pressure of the machine is large, and the maximum pressure is 150Mpa.

3

Low speed: The crankshaft speed is 110-160 beats/min. The running balance is low.

4

Can be used for high pressure homogenization and high pressure spray

5

Hydraulic control, air pressure control and manual control can he realized.

6

Long service life of vulnerable parts, energy saving and oil saving.

Product structure diagram

structure-s

structure-2s

Machine Details

1. Hydraulic end:

(1) Main pump body: three-way type, the gland adopts radial self-aligning seal, which is durable and free of leakage.

(2) Plunger: special alloy plunger, durable, safe and easy to disassemble. Square plunger seal assembly, code x4310. (the pump body does not need to be unloaded to replace the seal) Check valve: durable and reliable, ensuring flow ≥ rated flow value.

(3) Homogenization valve: three piece flat valve (high pressure valve core, seat and collision ring) is installed at the first stage of high pressure, and two piece flat valve is installed at the second stage of low pressure.

2. Power end:

(1) Drive: two-stage variable speed; The primary belt pulley and the secondary curved arm gear are symmetrically driven; Special alloy bearing bush, bilateral rolling bearing, horizontal stability, low noise, and the average mechanical efficiency is increased by about 10%.

(2) Lubrication: splash automatic lubrication and forced lubrication by oil pump, safe and reliable.

P1S (2)

d1s (6)

d2s (6)

d3s (7)

Application

  1,  food and beverage industry: milk, yogurt, soy milk, peanut milk, milk powder, ice cream, natural drinks, juice drinks, food additives, all kinds of spices, etc.

  2,  light industry, chemical industry: all kinds of emulsifier, flavor spices, cosmetics, paint, dye, emulsion, thickening agents, detergent, emulsified oil, etc.

  3,  the pharmaceutical industry: antibiotics, Chinese traditional medicine preparation, liquid slurry preparation, nutrition, health care, etc.

  4,  bioengineering technology: cell disruption, enzyme engineering, the extraction of effective ingredients, etc.

1, food and beverage industry: milk, yogurt, soy milk, peanut milk, milk powder, ice cream, natural drinks, juice drinks, food additives, all kinds of spices, etc. 2, light industry, chemical industry: all kinds of emulsifier, flavor spices, cosmetics, paint, dye, emulsion, thickening agents, detergent, emulsified oil, etc. 3, the pharmaceutical industry: antibiotics, Chinese traditional medicine preparation, liquid slurry preparation, nutrition, health care, etc. 4, bioengineering technology: cell disruption, enzyme engineering, the extraction of effective ingredients, etc.
