Pvc Glue Filling Machine - - MAXWELL
Product details of the pvc glue filling machine
Product Introduction
MAXWELL pvc glue filling machine is available in various innovative and useful design styles. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea It is designed to have a long lifespan to achieve cost-effectiveness. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea Wuxi MAXWELL Automation Technology Co., Ltd has professional production and management personnel. Wuxi MAXWELL Automation Technology Co., Ltd is a leading manufacturer of Industrial planetary mixers, vacuum emulsifying mixers, glue filling machines, capping machine and silicone sealant filling machines. MAXWELL has over 18 years of expertise and has developed immensely in the research, design, manufacture, sale, and service of different Mixing Machine and Filling Equipment used for various products such as lotions, creams, paste, sauces, gel, paints, epoxy resin, lithium battery slurry, grea
Product Introduce

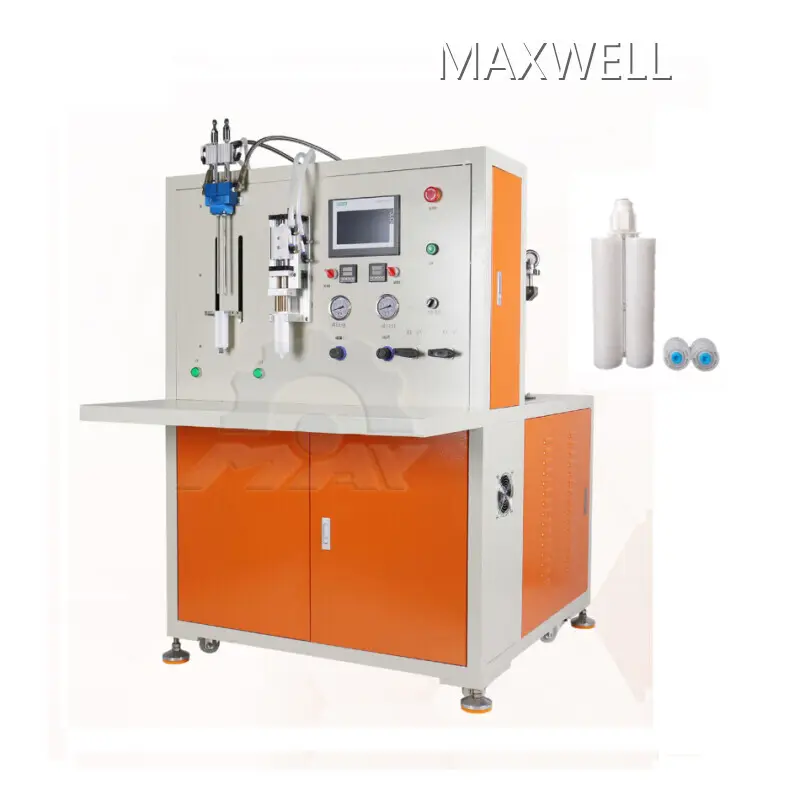

The Semi-auto filling and capping machine is powered by Gear wheel pump, The glue is extracted from two buckets and filled into a small two-component cartridge, And the extension tube is extended into the bottom of the cartridge to fill the fluid with uniform motion, Which can prevent air from entering the material, When the sensor detects that the material reaches the capacity, It will immediately stop working to ensure the accuracy of the capacity.
At the same time, On the other side of the machine, The pistons can be pressed into the cartridge,A machine for two purposes, And only one person to operate, It is greatly improving the work efficiency.
It can filling into 25ml 50ml 75ml 200ml 400ml 600ml 250ml 490ml Two component Cartridges, Ratio:1:1 2:1 10:1 4:1, Please let me know your requirements.
Video Display
Product Parameter
|
Type |
MAX-F005 |
|
Pressure Barrel |
15L \ 30L Adjustable |
|
Power Supply |
220V / 50HZ |
|
Working air pressure |
0.4~0.7 MPa |
|
Filling Volume |
25ml 50ml 75ml 200ml 400ml 600ml adjustable |
|
Volume Precision |
±1~2% |
|
Speed |
120~600pcs/hour |
|
Dimensions(L×W×H) |
1200mm×1000mm*1600mm |
|
Weight |
Around 300kg |
Product Advantage
Dual Cartridge Filling Machine Structure
● ① Outlet valve
● ② Emergency stop button
● ③ Glue filling button
● ④ Fixture of AB cartridge
● ⑤ Glue quantity sensor
● ⑥ Glue sensor fixing screw
● ⑦ Pistion depth adjustment screw
● Press down piston button, Press down piston structure, Glue outlet tube, Touch screen,etc.
Application
This machine is suitable for AB adhesive, epoxy resin, polyurethane adhesive, PU adhesive, acrylic rubber, rock board adhesive, silicone, thixotropic silicone, sealant, planting glue, casting glue, silica gel, etc.
Factory advantage
In the application field of the multi-function mixer, we accumulated a wealth of experience.
Our product combination include the combination of high speed and high-speed, the combination of high-speed and low-speed and the combination of low-speed and low-speed. High-speed part is divided into high shear emulsification device, high-speed dispersion device, high-speed propulsion device, butterfly stirring device. Low-speed part is divided into anchor stirring, paddle stirring, spiral stirring, helical ribbon stirring, rectangular stirring and so on. Any combination has its unique mixing effect. It also have vacuum and heating function and temperature inspect function
Company Feature
• Founded in MAXWELL has a history of years. We have accumulated rich industry experience relying on the wisdom and skills of all members.
• At present, our products are not only sold well in China, but also occupy a certain market share in foreign countries.
• MAXWELL has established a complete set of service system. We are willing to provide consumers with comprehensive and thoughtful services.
• MAXWELL has obvious geographical advantages with great traffic convenience.
If you would like to know more about MAXWELL's cosmetic makingm machine,mayonnaise making machine,vacuum emulsifying mixer,double planetary mixer,filling machine,glue filling machine,silicone sealant filling machine,vacuum planetary mixer,industrial mixer,homogenizer,lab planetary mixer,vacuum homogenizer mixer,cosmetic cream mixer machine, please leave your contact information. We will send you details later. It might take some time due to the large number of consultations. Your patience would be much appreciated!
